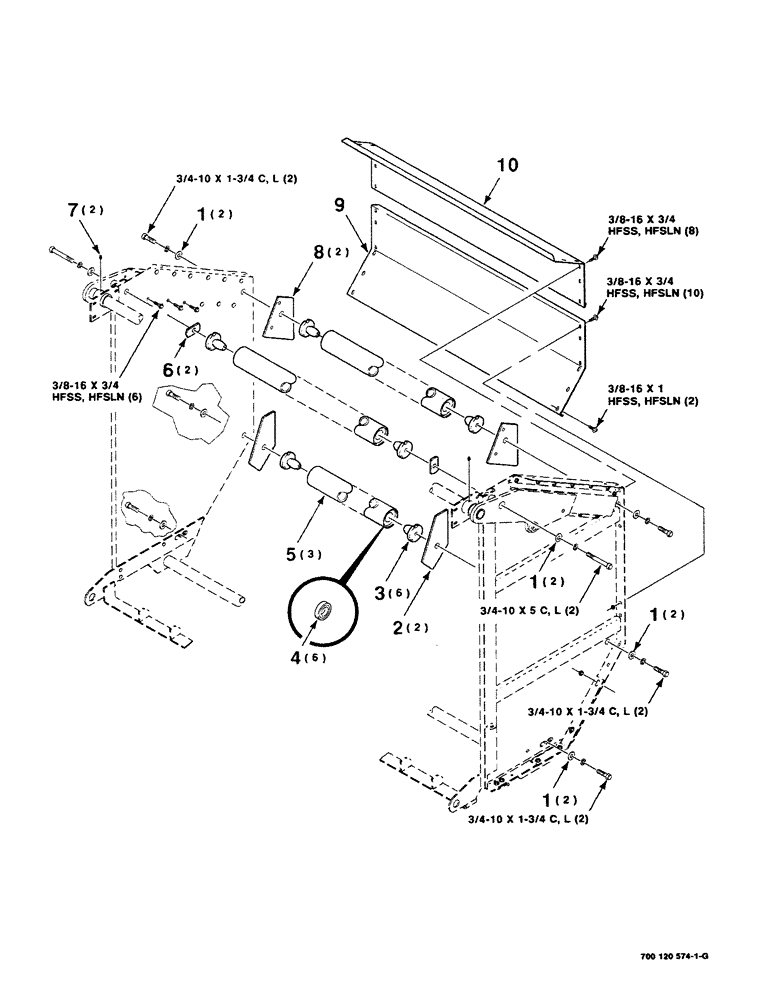

Запчасти Case IH 8430 (5-06) - TAILGATE AND ROLLER ASSEMBLY (16) - BALE EJECTOR

1

705566

WASHER

3/4 HARDENED PLAIN WASHER

8шт.

2

700120593

PLATE

- reinforcement

2шт.

3

700100927

HUB

- roller

6шт.

4

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

6шт.

5

700116217

ROLL

ER ASSEMBLY (includes item 4)

3шт.

6

700101588

SPACER

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

8

700120791

PLATE

- reinforcement

2шт.

9

700120589

SHIELD

PANEL - rear, lower

1шт.

10

700120588

SHIELD

- rear, upper

1шт.

7701196

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4-10 x 1-3/4 C

6шт.

703660

BOLT,Hex 3/4" - 10 x 5", Gr 5

3/4-10 x 5 C

2шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

24шт.

7703424

FLANGE BOLT,Hex, Serr, 3/8" - 16 x 1"

3/8-16 x 1 HFSS

2шт.

704247

NUT

3/8-16 HFSLN

26шт.

705111

LOCK WASHER,3/4"

3/4"

8шт.
