(6-22) - FORMING BELTS ASSEMBLY

Запчасти Case IH 8430 (6-22) - FORMING BELTS ASSEMBLY (14) - BALE CHAMBER

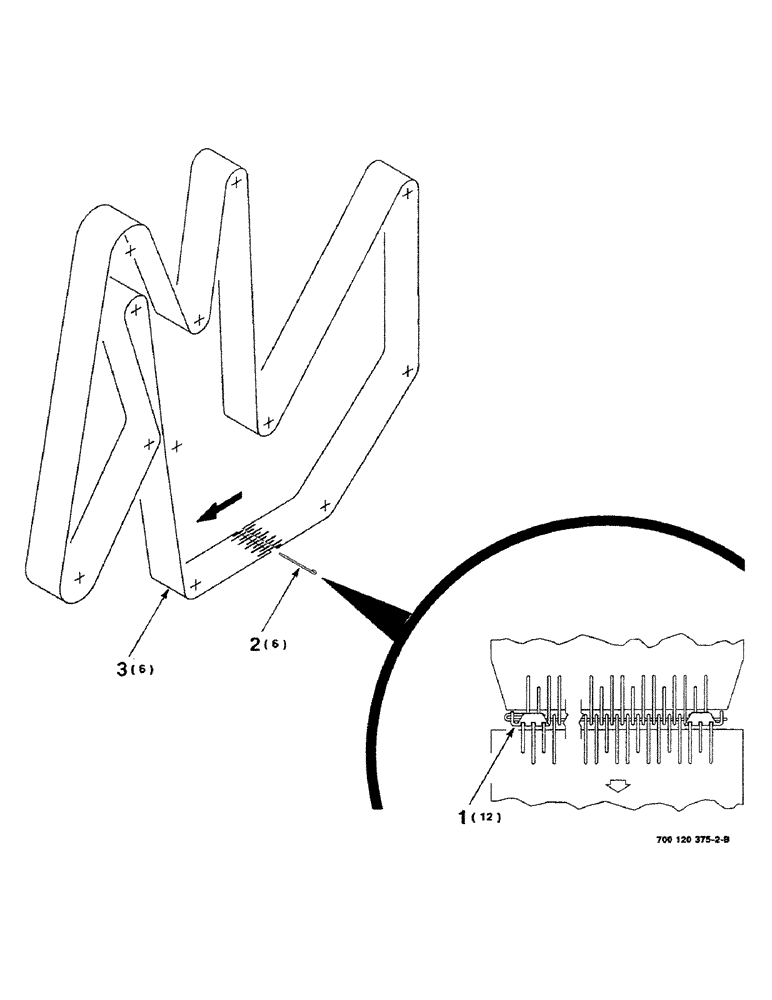

Схема запчастей Case IH 8430 - (6-22) - FORMING BELTS ASSEMBLY (14) - BALE CHAMBER
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707322

LATCH ASSY.

FASTENER

12шт.

2

700710206

PIN,1.73mm OD x 180mm L

- lacing

6шт.

3

700709185

BELT

- forming

6шт.

Titan lacings are standard equipment starting at PIN CFH0013389

1шт.

FOR TITAN LACING PIN USE 700713342.

1шт.

FOR TITAN LACING KIT USE 700713338.

1шт.

700713890 IS A TITAN LACE BELT FOR THE 8430, THAT IS 7" * 366" IN SIZE.

1шт.
