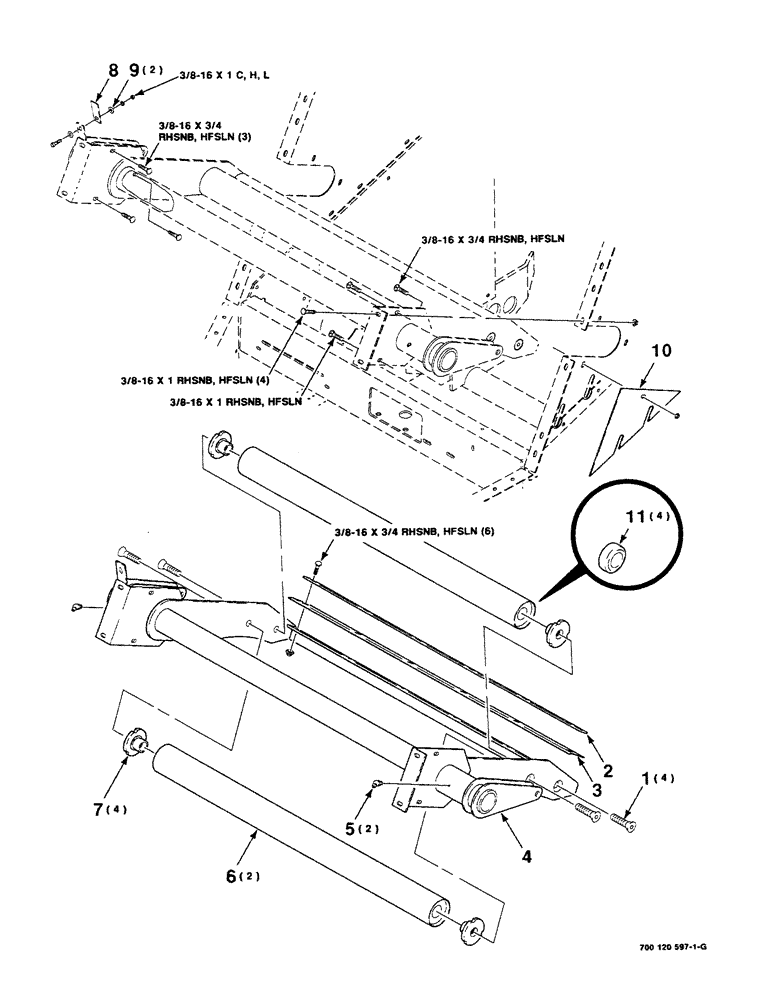

Запчасти Case IH 8430 (6-18) - BALE CHAMBER SIZING ROLLER ASSEMBLY (14) - BALE CHAMBER

1

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 x 1-3/4 HSFCHCS

4шт.

2

700120608

STRAP

- reinforcement

1шт.

3

700120609

SCRAPER

1шт.

4

700120598

ARM

FRAME WA - tensioner, lower

1шт.

5

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 x 45deg. ZERK

2шт.

6

700107934

ROLL

ER - idler (includes item 11)

2шт.

7

700100927

HUB

- roller

4шт.

8

1713155

FLAP

- counter

1шт.

9

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

10

700119915

PLATE

- reinforcement

1шт.

11

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- spherical

4шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

5шт.

700047

BOLT

3/8-16 x 1 RHSNB

11шт.

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

704247

NUT

3/8-16 HFSLN

16шт.

705038

CONTROL VALVE

3/8"

1шт.
