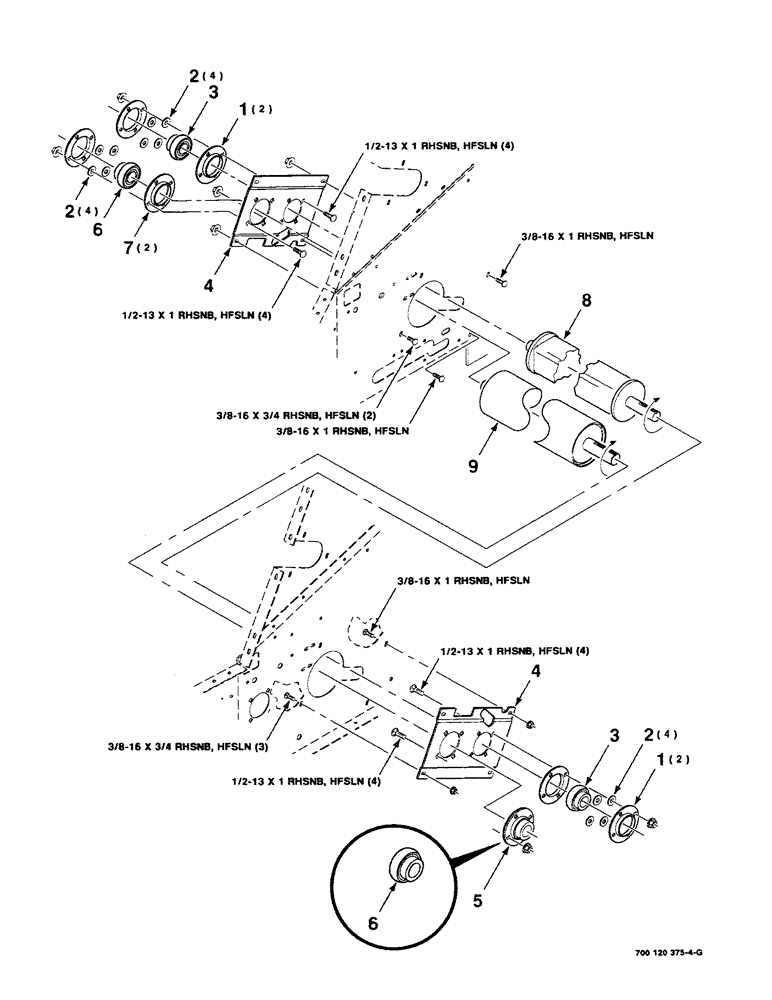

Запчасти Case IH 8430 (6-14) - DRIVE ROLLER ASSEMBLY (LOWER-METAL) (14) - BALE CHAMBER

1

663562R1

FLANGE

- bearing

4шт.

2

7852213

SHIM

WASHER - shim

12шт.

3

50468

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm

- spherical

2шт.

4

700120476

SUPPORT

- bearing

2шт.

5

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY (includes item 6)

1шт.

6

51318

BEARING

- spherical

2шт.

7

50583

FLANGED BEARING

BEARING - spherical

2шт.

8

700120467

ROLLER

WA

1шт.

9

700120471

ROLLER

WA

1шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

5шт.

700047

BOLT

3/8-16 x 1 RHSNB

3шт.

7700131

SHROUD,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

16шт.

704247

NUT

3/8-16 HFSLN

8шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

16шт.
