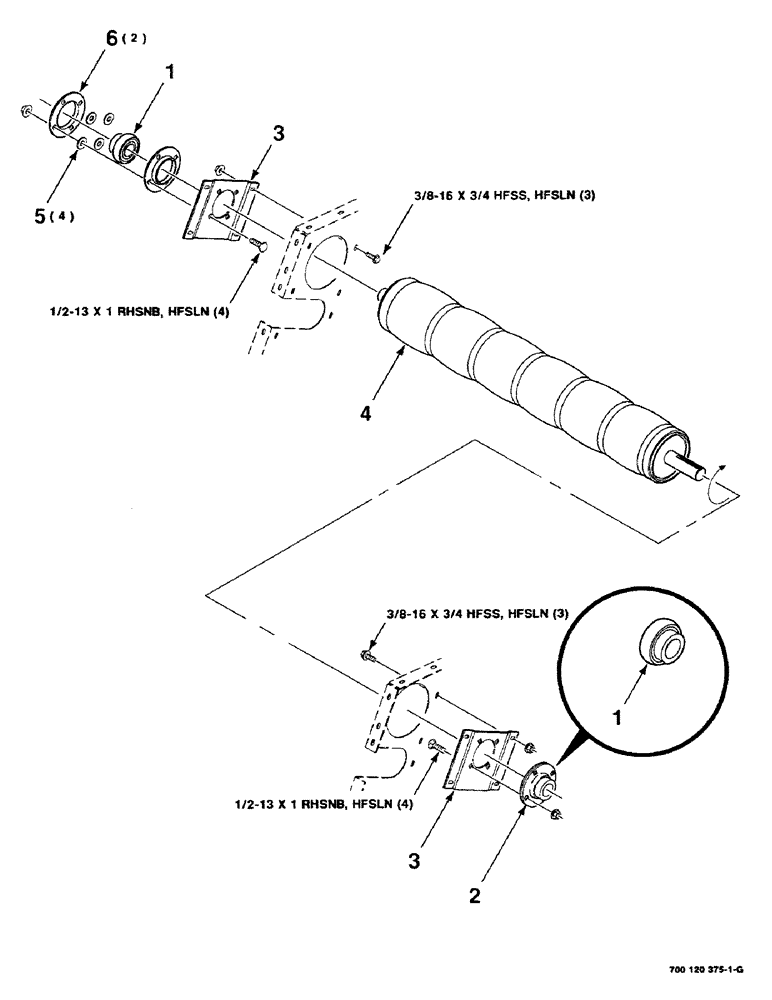

Запчасти Case IH 8430 (6-12) - DRIVE ROLLER ASSEMBLY (UPPER-RUBBER) (14) - BALE CHAMBER

1

51318

BEARING

- spherical

2шт.

2

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY (includes item 1)

1шт.

3

700120478

SUPPORT

MOUNT - bearing

2шт.

4

700120470

ROLLER

- upper, rubber

1шт.

5

7852213

SHIM

WASHER - shim

4шт.

6

50583

FLANGED BEARING

- bearing

2шт.

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

8шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

6шт.

704247

NUT

3/8-16 HFSLN

6шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

8шт.
