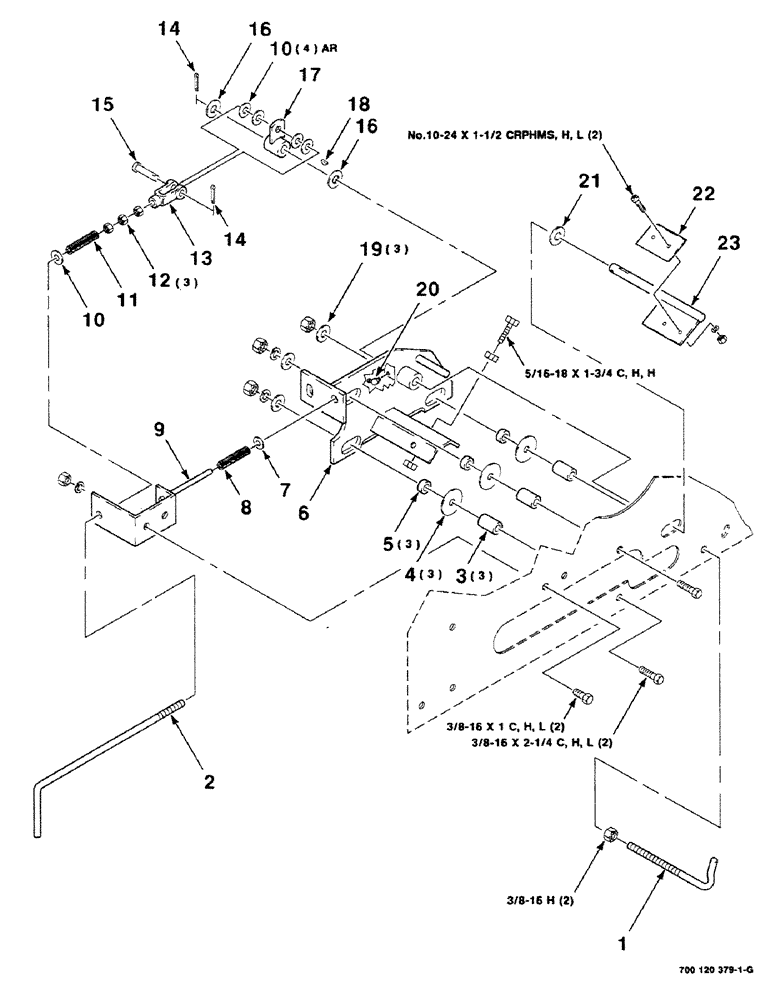

Запчасти Case IH 8430 (6-10) - THREADER ASSEMBLY (TWINE CUTOFF) (14) - BALE CHAMBER

1

700117238

ROD

- twine, guide

1шт.

2

700115917

ROD

1шт.

3

700116070

SPACER

3шт.

4

7705734

WASHER

3/8 FENDER WASHER

3шт.

5

6212740

SPACER

3шт.

6

700117227

SUPPORT

WA - cutoff

1шт.

7

705517

WASHER

1/4 HARDENED PLAIN WASHER

1шт.

8

700707200

COMPRESSION SPRING

SPRING - compression

1шт.

9

700117224

SUPPORT

WA - rod

1шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

5шт.

11

58040

COMPRESSION SPRING

SPRING - compression

1шт.

12

704304

NUT

3/8-24 H

3шт.

13

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS

1шт.

14

432-816

COTTER PIN,1/8" x 1"

1/8 x 1 COTTER PIN

2шт.

15

063586

CLEVIS PIN

3/8 x 1-1/8 CLEVIS PIN

1шт.

16

52886

WASHER

1/2 x 14 NRMB

2шт.

17

700117232

HUB

- actuator

1шт.

18

61275

WOODRUFF KEY,#7, 1/8" x 3/4"

1/8 x 3/4 WOODRUFF KEY

1шт.

19

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

3шт.

20

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 x 45deg. ZERK

1шт.

21

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

22

700106962

KNIFE

- twine

1шт.

23

700117233

SUPPORT

MOUNT WA - knife

1шт.

7703838

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

5/16-18 x 1-3/4 C

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

701888

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 x 2-1/4 C

2шт.

700700628

SCREW,Cross Pan Hd, #10-24 x 1/2"

NO. 10-24 x 1/2 CRPHMS

2шт.

NLS

NO LONGER SERVICED

NO. 10-24 H

2шт.

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

704023

NUT,3/8"-16, G5

3/8-16 H

6шт.

705004

LOCK WASHER

NO. 10 L

2шт.

705038

CONTROL VALVE

3/8"

4шт.
