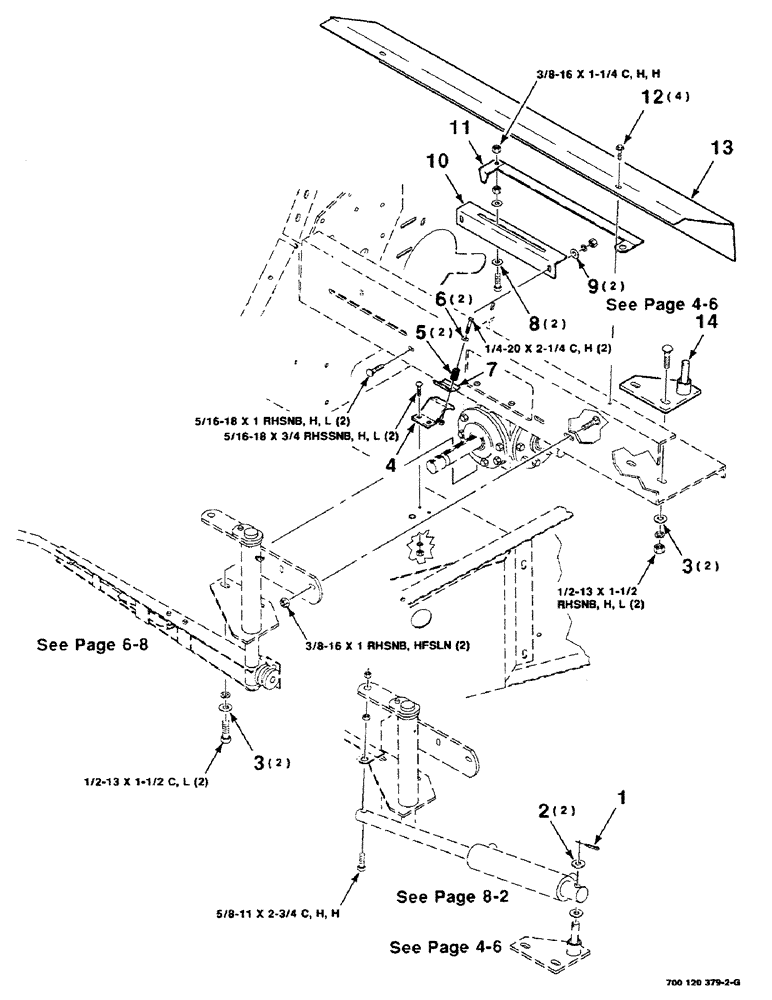

Запчасти Case IH 8430 (6-06) - THREADER INDICATOR AND TWINE TENSIONER ASSEMBLY (14) - BALE CHAMBER

1

62182

PIN

5/32 x 1-1/4 COTTER PIN

1шт.

2

705582

WASHER

5/8 HARDENED PLAIN WASHER

2шт.

3

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

4

700117237

SUPPORT

- tensioner

1шт.

5

700707677

SPRING

- compression

2шт.

6

705517

WASHER

1/4 HARDENED PLAIN WASHER

2шт.

7

6549869

SUPPORT

BRACKET - tensioner

1шт.

8

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

9

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

10

700120481

ANGLE

- guide, indicator

1шт.

11

700120495

INDICATOR

1шт.

12

772525

WASHER

5/16-18 x 1/2 HWHTCTS

4шт.

13

700120494

SHIELD

1шт.

14

700120482

MOUNTING PARTS

MOUNT - cylinder

1шт.

7773849

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

1/4-20 x 2-1/4 C

2шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

1шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

2шт.

703561

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 x 2-3/4 C

1шт.

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

2шт.

700047

BOLT

3/8-16 x 1 RHSNB

2шт.

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 RHSNB

2шт.

7700461

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSSNB

2шт.

704007

NUT,1/4"-20, G5

1/4-20 H

2шт.

704015

NUT,5/16"-18, G5

5/16-18 H

4шт.

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

86516876

COVER

1/2-13 H

2шт.

704247

NUT

3/8-16 HFSLN

2шт.

705020

LOCK WASHER

5/16"

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.
