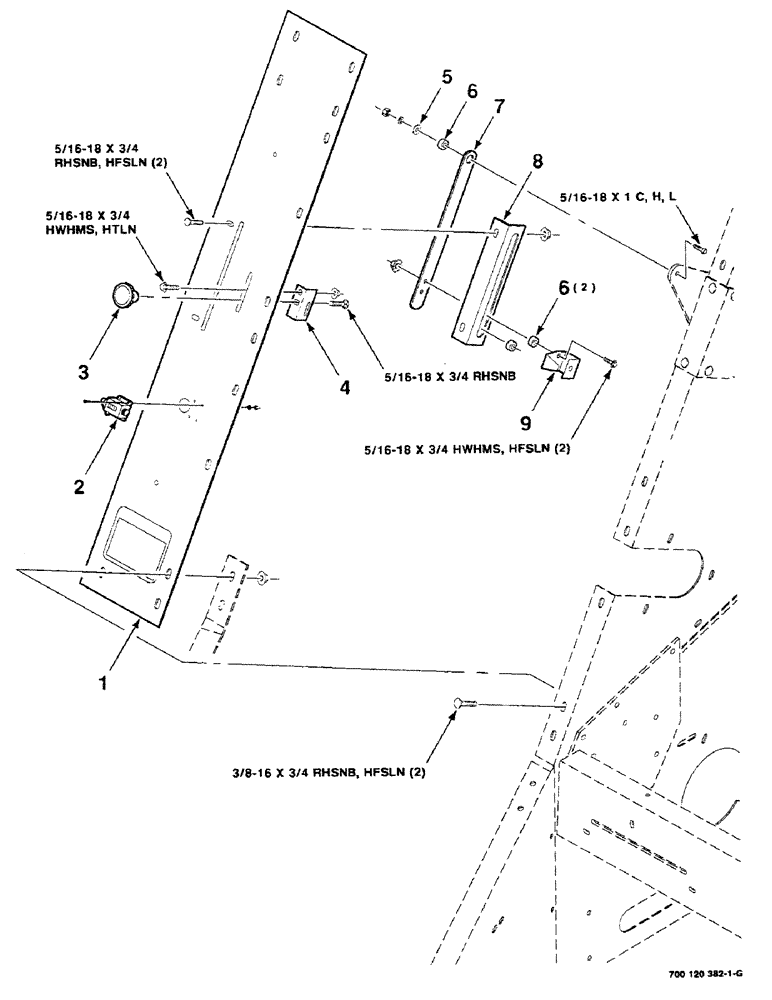

Запчасти Case IH 8430 (6-04) - SHIELD AND BALE SIZE INDICATOR ASSEMBLIES (RIGHT-FRONT) (14) - BALE CHAMBER

1

700120617

FLANGE

- front, right

1шт.

2

700707437

COUNTER

- bale (includes hardware)

1шт.

item #2, 700707437 counter has an internal spring which is nss

1шт.

3

700707234

BUTTON

KNOB

1шт.

4

700115974

SUPPORT

MOUNT - switch

1шт.

5

700709602

WASHER,5/16"

5/16 WIDE PLAIN WASHER

1шт.

6

700115973

SPACER

3шт.

7

700120620

LINK

- indicator

1шт.

8

700120619

ANGLE

- guide, indicator

1шт.

9

700115976

INDICATOR

1шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 C

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

3шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

6шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

3шт.

704015

NUT,5/16"-18, G5

5/16-18 H

1шт.

231-4115

NUT,5/16"-18, GB

5/16-18 HTLN

1шт.

704239

FRONT AXLE

5/16-18 HFSLN

4шт.

704247

NUT

3/8-16 HFSLN

6шт.

705020

LOCK WASHER

5/16"

1шт.
