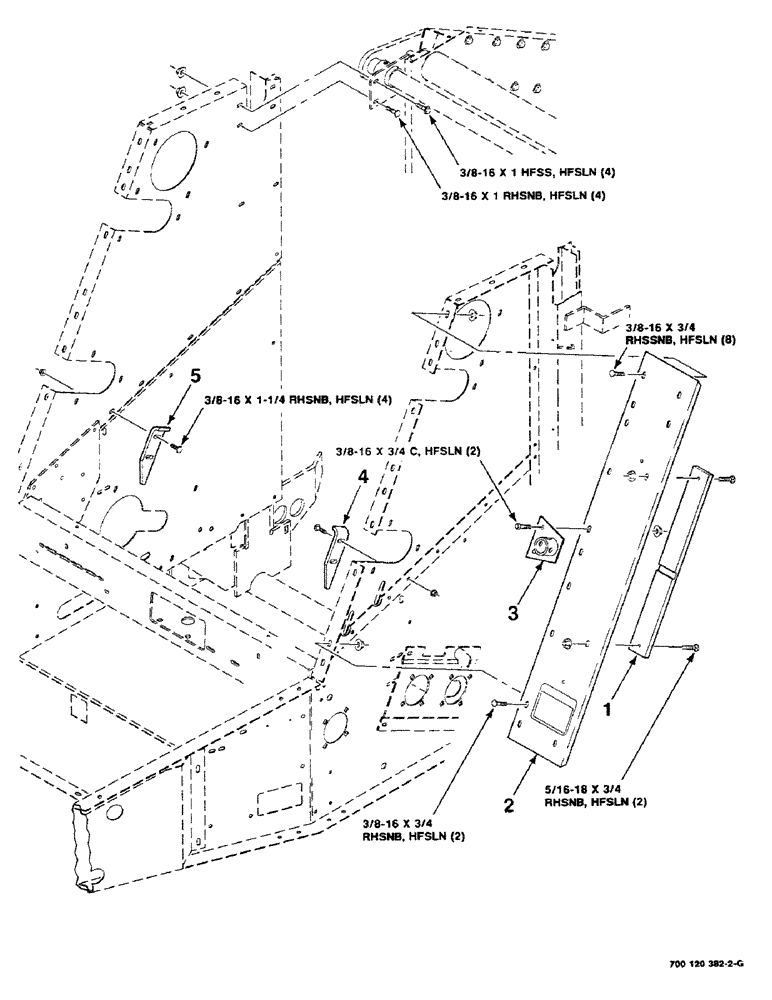

Запчасти Case IH 8430 (6-02) - SHIELD AND CHAIN BUMPER ASSEMBLIES (LEFT-FRONT) (14) - BALE CHAMBER

1

700709195

BUMPER

- chain

1шт.

3

700119914

MOUNTING PARTS

MOUNT WA - jack

1шт.

4

700127913

STRAP

- left

1шт.

5

700127914

STRAP

- right

1шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C

2шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

2шт.

700047

BOLT

3/8-16 x 1 RHSNB

4шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 RHSNB

4шт.

7770456

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSSNB

8шт.

7703424

FLANGE BOLT,Hex, Serr, 3/8" - 16 x 1"

3/8-16 x 1 HFSS

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

2шт.

704247

NUT

3/8-16 HFSLN

24шт.

Ref #2 is 700117186

1шт.
