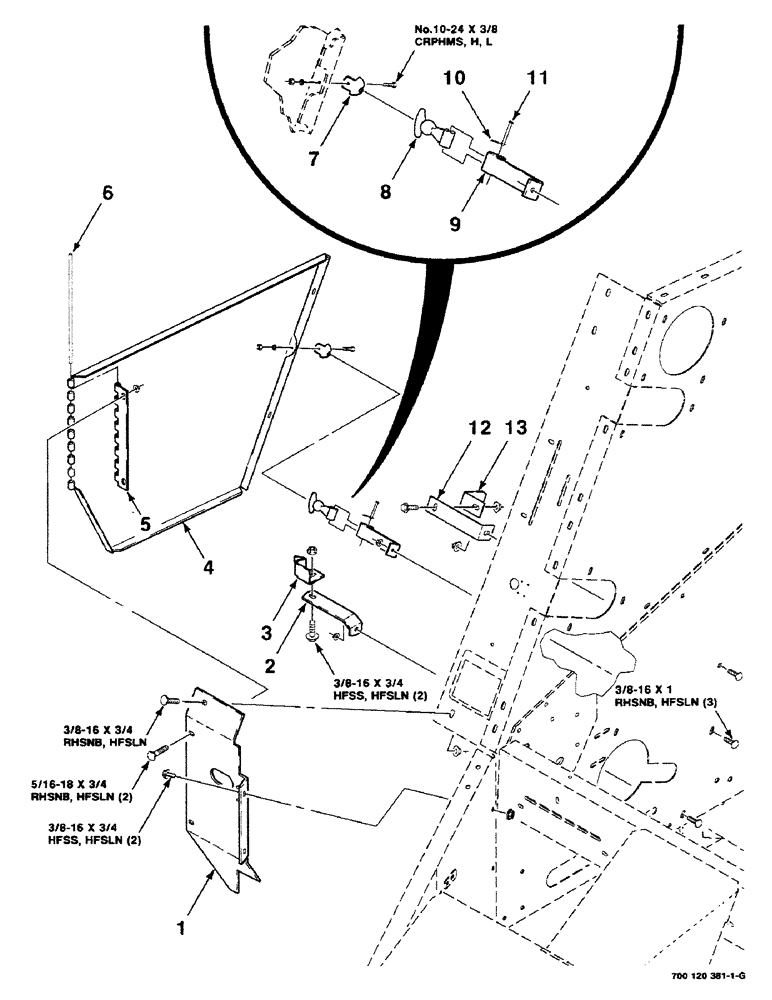

Запчасти Case IH 8430 (7-14) - SHIELDS ASSEMBLY (LOWER-RIGHT) (12) - MAIN FRAME

1

700120566

SUPPORT

- shield, front

1шт.

2

700120560

STRAP

- support

1шт.

3

700120564

SUPPORT

- shield

1шт.

4

700120562

SHIELD

- lower, right

1шт.

5

700117193

HINGE

1шт.

6

6556518

PIN

1шт.

7

8722910

BRACKET

- latch

1шт.

8

776682

HOOK

- rubber

1шт.

9

700120555

SUPPORT

- latch

1шт.

10

62034

BATTERY

3/32 x 3/4 COTTER PIN

1шт.

11

863126

PIN

1/4 x 1-3/4 CLEVIS PIN

1шт.

12

700117201

SUPPORT

- shield

1шт.

13

700120552

SUPPORT

- shield

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

1шт.

700047

BOLT

3/8-16 x 1 RHSNB

3шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

4шт.

700704837

SCREW,Cross Pan Hd, #10-24 x 3/8"

NO. 10-24 x 3/8 CRPHMS

1шт.

704072

NUT

NO. 10-24 H

1шт.

704239

FRONT AXLE

5/16-18 HFSLN

2шт.

704247

NUT

3/8-16 HFSLN

8шт.

705004

LOCK WASHER

NO. 10 L

1шт.
