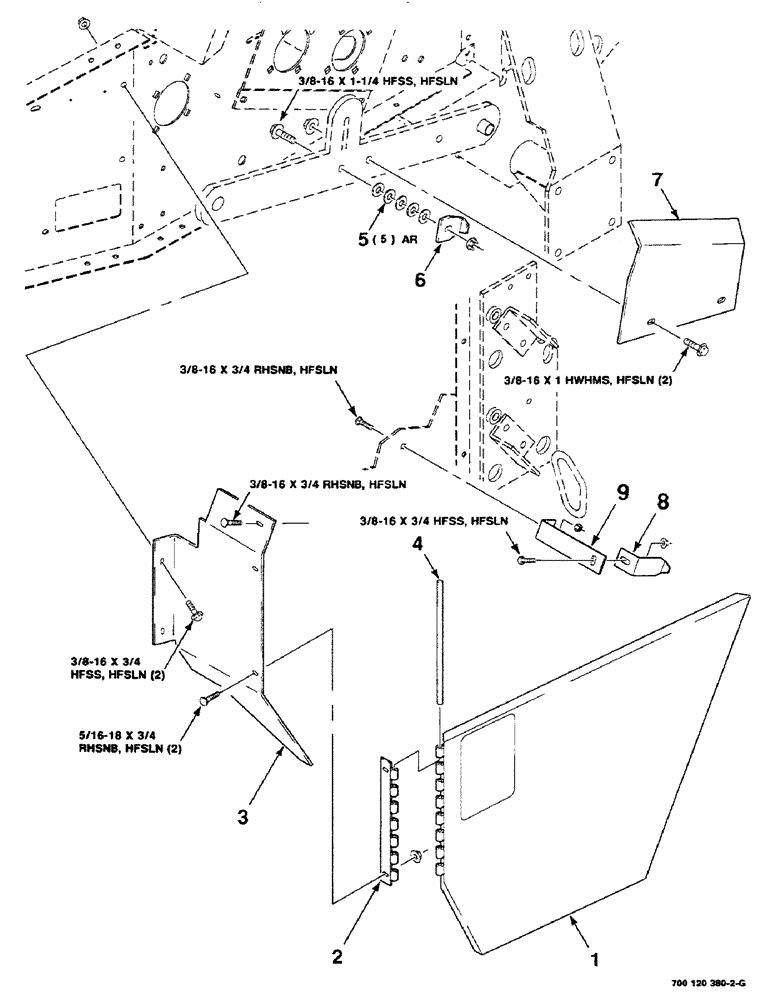

Запчасти Case IH 8430 (7-10) - SHIELDS ASSEMBLY (LOWER-LEFT) (12) - MAIN FRAME

1

700120549

SHIELD

- side, left, lower

1шт.

2

700119907

HINGE

1шт.

3

700120546

SUPPORT

- shield, front

1шт.

4

6556518

PIN

- hinge

1шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

5шт.

6

700120551

SUPPORT

- shield

1шт.

7

700120553

SHIELD

- chain

1шт.

8

700120552

SUPPORT

- shield

1шт.

9

700117201

SUPPORT

- shield

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

2шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

2шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

3шт.

7771470

BOLT,Hex Serr, 3/8" - 16 x 1 1/4"

3/8-16 x 1-1/4 HFSS

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

2шт.

704247

NUT

3/8-16 HFSLN

8шт.
