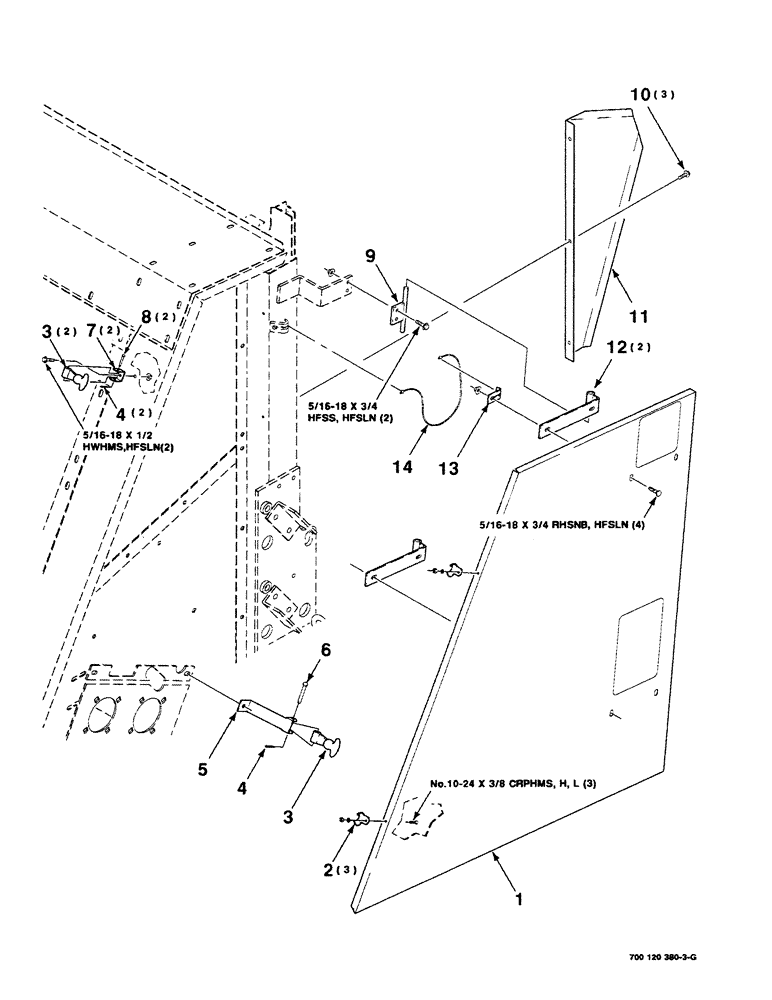

Запчасти Case IH 8430 (7-08) - SHIELDS ASSEMBLY (UPPER-LEFT) (12) - MAIN FRAME

1

700120556

SHIELD

- side, upper, left

1шт.

2

8722910

BRACKET

- catch

3шт.

3

776682

HOOK

- rubber

3шт.

4

62034

BATTERY

3/32 x 3/4 COTTER PIN

3шт.

5

700120555

SUPPORT

- latch

1шт.

6

863126

PIN

1/4 x 1-3/4 CLEVIS PIN

1шт.

7

776674

SUPPORT

BRACKET - anchor

2шт.

8

63784

CLEVIS PIN

1/4 x 1-1/2 CLEVIS PIN

2шт.

9

700117198

ROD

WA

1шт.

10

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 x 1/2 HWHTCTS

3шт.

11

700120545

SHIELD

- rear, left

1шт.

12

700117203

HINGE

WA - shield

2шт.

13

700114675

ANCHOR

- cable

1шт.

14

700706805

CABLE

ASSEMBLY

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

4шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

2шт.

703132

SERRATED SCREW

5/16-18 x 3/4 HFSS

2шт.

700704837

SCREW,Cross Pan Hd, #10-24 x 3/8"

NO. 10-24 x 3/8 CRPHMS

2шт.

704072

NUT

NO. 10-24 H

2шт.

704239

FRONT AXLE

5/16-18 HFSLN

8шт.

705004

LOCK WASHER

NO. 10 L

2шт.
