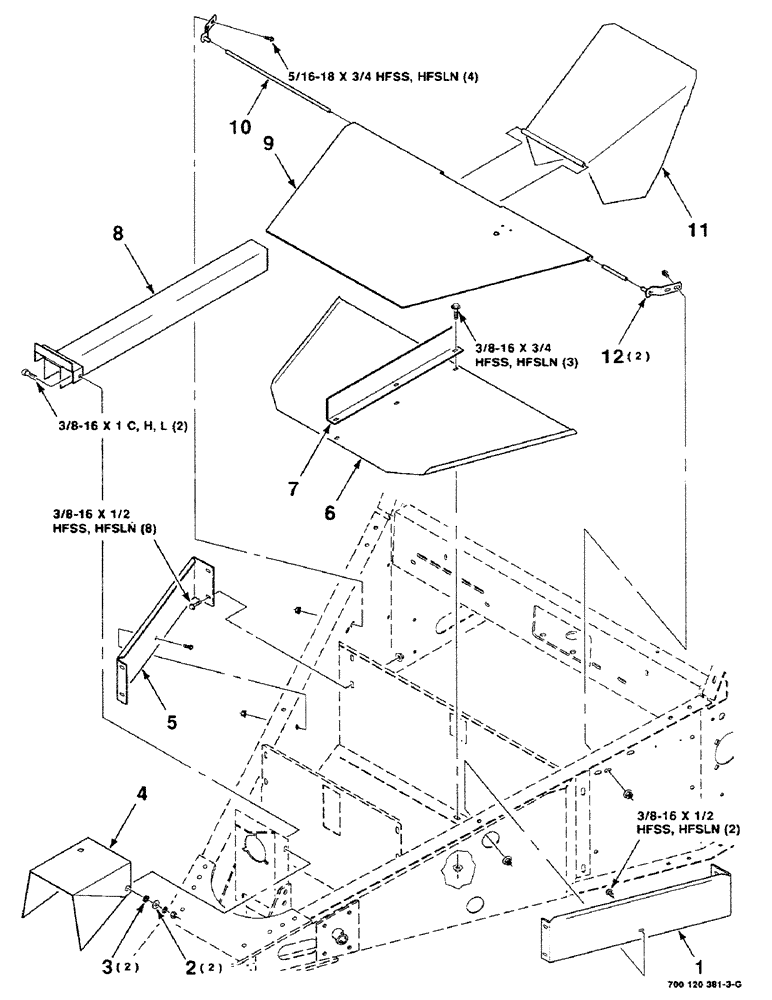

Запчасти Case IH 8430 (7-06) - SHIELDS ASSEMBLY (DRIVELINE AND TWINE BOX) (12) - MAIN FRAME

1

700120571

PANEL

- side, left

1шт.

2

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

3

160127

SPACER

2шт.

4

700122596

SHIELD

- pto

1шт.

5

700120572

PANEL

- side, right

1шт.

6

700120570

PANEL

- floor

1шт.

7

700120573

DIVIDER

- twine box

1шт.

8

700120462

SHIELD

1шт.

9

700120569

COVER

- twine box

1шт.

10

700120565

ROD

PIN - hinge

1шт.

11

700120567

SHIELD

- drive line

1шт.

12

700120558

SUPPORT

PIVOT - support

2шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

703132

SERRATED SCREW

5/16-18 x 3/4 HFSS

4шт.

7772700

BOLT,Hex Serr, 3/8" - 16 x 1/2"

3/8-16 x 1/2 HFSS

10шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

3шт.

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

704239

FRONT AXLE

5/16-18 HFSLN

4шт.

704247

NUT

3/8-16 HFSLN

13шт.

705038

CONTROL VALVE

3/8"

2шт.
