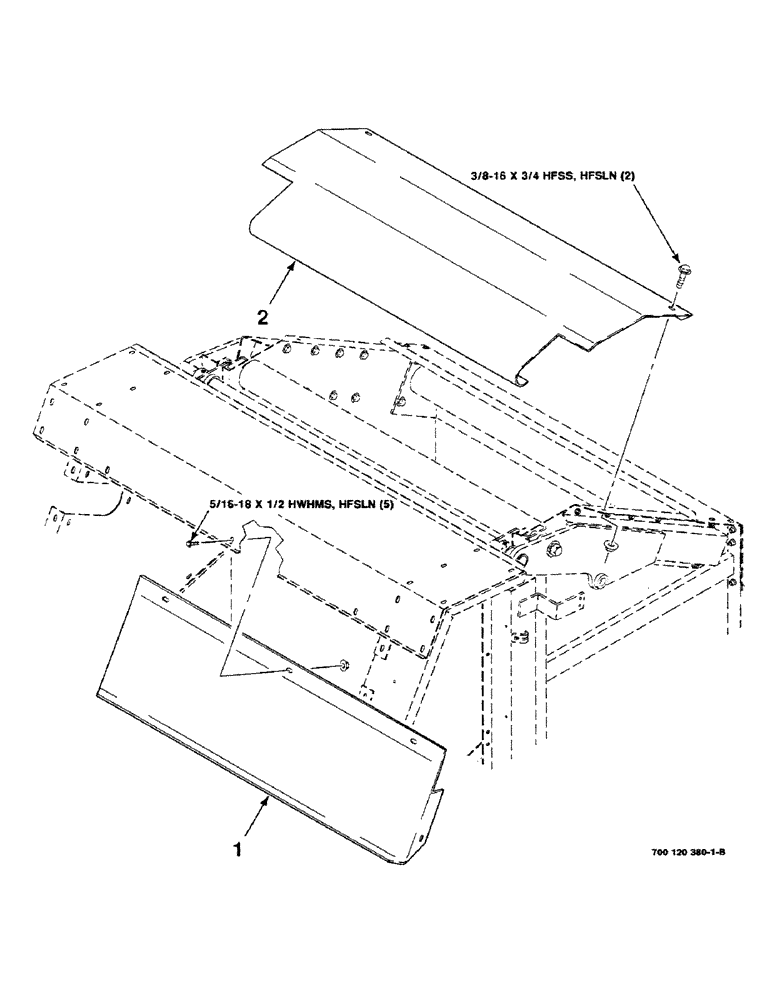

Запчасти Case IH 8430 (7-05) - SHIELDS ASSEMBLY (TOP) (12) - MAIN FRAME

1

700120547

SHIELD

- front

1шт.

2

700120554

SHIELD

- roller, top

1шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

5шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

5шт.

704247

NUT

3/8-16 HFSLN

2шт.

note: the shield between items 1 and 2 is 700120437 support shield and the shield plates on the top on each side of this shield is part no. 700117157

1шт.
