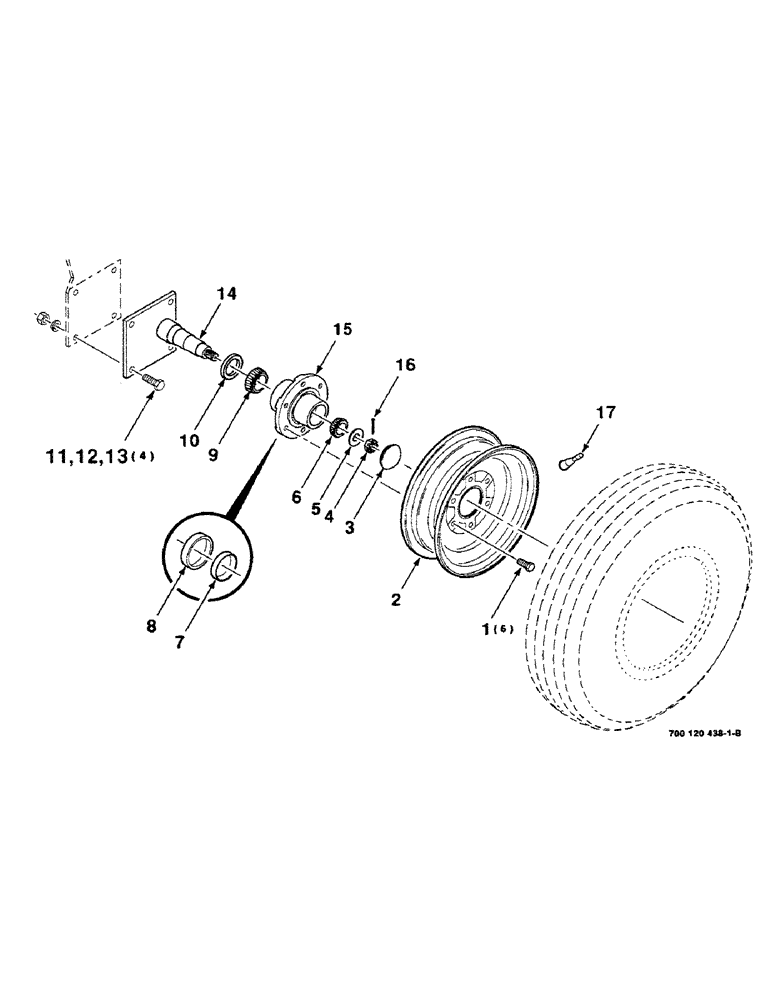

Запчасти Case IH 8430 (7-04) - WHEEL AND HUB ASSEMBLY (12) - MAIN FRAME

1

T52730

WHEEL BOLT

9/16-18 x 1-1/8 WHEEL BOLT

6шт.

2

700707924

RIM

WHEEL - 15 inch

1шт.

3

D143405

CAP

- hub

1шт.

4

274760

SEAL KIT

7/8-14 SLOTTED HEX NUT

1шт.

5

26971

WASHER

1шт.

6

712166

CONE

- bearing, outer

1шт.

7

712208

CUP

- bearing, outer

1шт.

8

712182

BEARING CUP,3.265" OD

CUP - bearing, inner

1шт.

9

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

CONE - bearing, inner

1шт.

10

744193

SEAL

- grease

1шт.

11

703793

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5, Full Thd

5/8-11 x 1-3/4 C

4шт.

12

705061

PLUG

5/8"

4шт.

13

704130

NUT,5/8"-11, G5

5/8-11 H

4шт.

14

700120439

SPINDLE

WA

1шт.

15

026690

HUB

(includes items 6 and 7)

1шт.

16

432-824

COTTER PIN,1/8" x 1 1/2"

1/8 x 1-1/2 COTTER PIN

1шт.

17

A38261

VALVE

STEM - valve

1шт.
