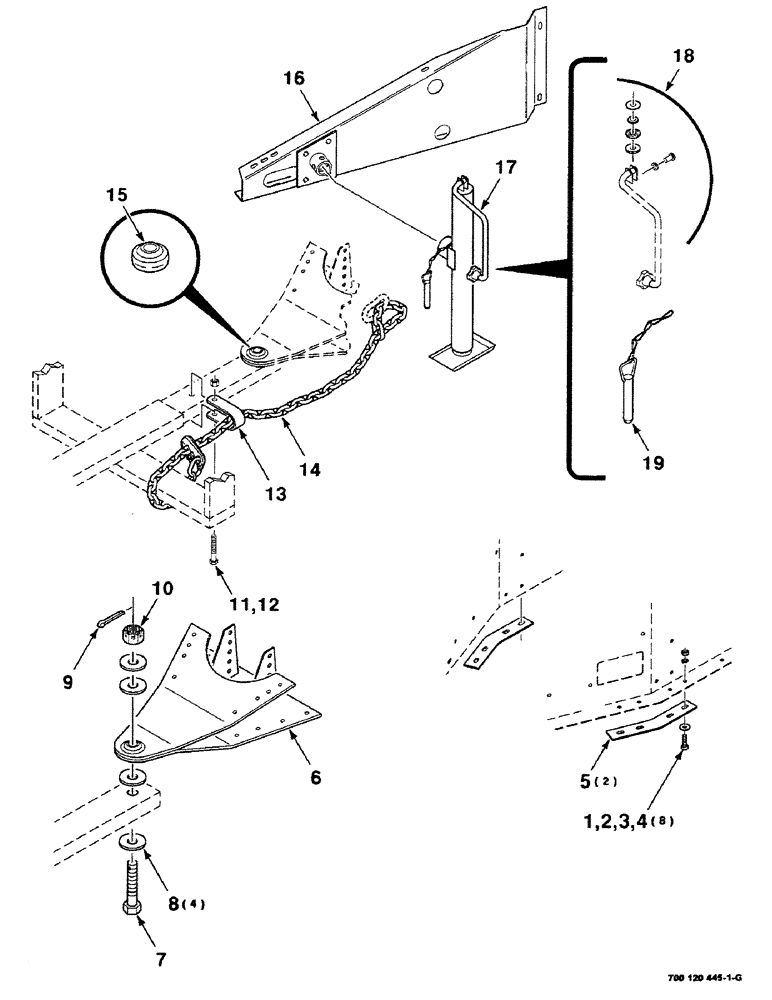

Запчасти Case IH 8430 (7-02) - HITCH, JACK AND TOW CHAIN ASSEMBLY (SAFETY) (12) - MAIN FRAME

1

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

8шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

8шт.

3

705038

CONTROL VALVE

3/8"

8шт.

4

704023

NUT,3/8"-16, G5

3/8-16 H

8шт.

5

700120443

SUPPORT

STRAP - reinforcement

2шт.

6

700120423

TRAILER HITCH

HITCH WA

1шт.

7

6471791

BOLT

1/8 x 5 BOLT - hitch

1шт.

8

705574

WASHER,1 1/8" x 2" x .156", HDN

4шт.

9

432-1232

COTTER PIN,3/16" OD x 2" L

3/16 x 2 COTTER PIN

1шт.

10

704973

SLOTTED NUT,1"-8, G5

1-8 SLOTTED HEX NUT

1шт.

11

7701550

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 C

1шт.

12

704924

NUT

5/8-11 HTLN GR/B

1шт.

13

700117928

CLEVIS

- safety chain

1шт.

14

700705598

CHAIN (CE)

SAFETY - chain

1шт.

15

D51609

BALL JOINT

BEARING - tongue

1шт.

16

700120427

SUPPORT

ASSEMBLY - jack

1шт.

17

700706826

JACK

- lift (includes items 18 and 19)

1шт.

18

700711826

JACK

KIT - service, T.W.

1шт.

19

700706640

PIN

AND CHAIN ASSEMBLY

1шт.
