(8-21) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE), (700711510 HYDRAULIC

Запчасти Case IH 8430 (8-21) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE), (700711510 HYDRAULIC (07) - HYDRAULICS

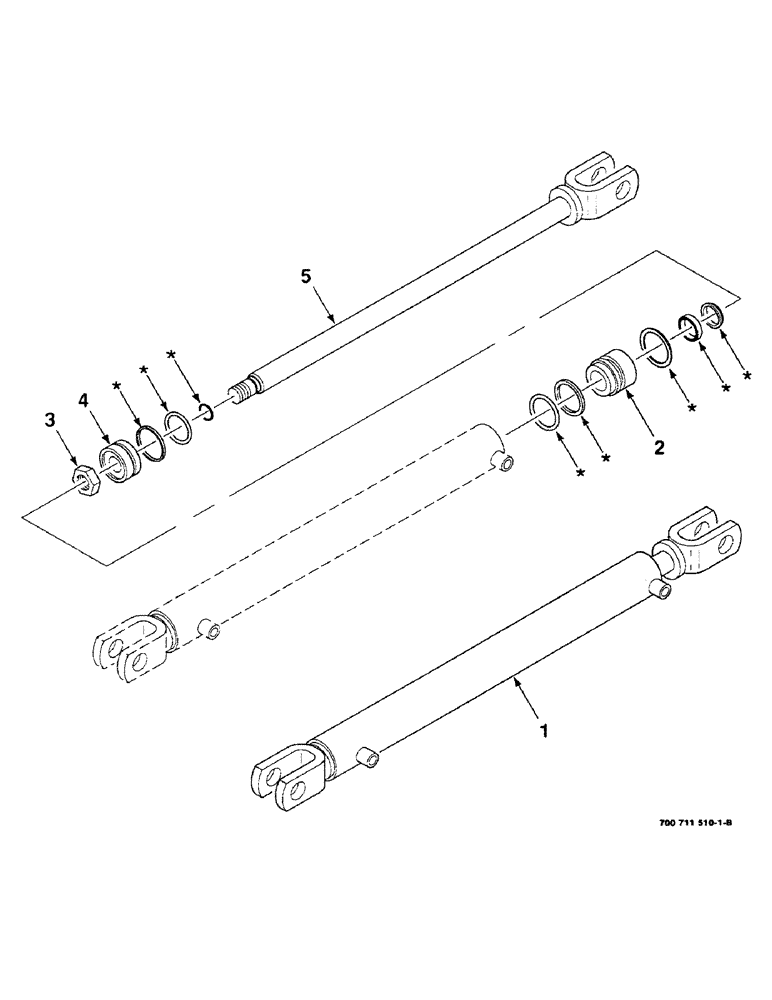

Схема запчастей Case IH 8430 - (8-21) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE), (700711510 HYDRAULIC (07) - HYDRAULICS
1
3
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700711510

CYLINDER

HYDRAULIC CYLINDER COMPLETE, 2 in I.D. x 20 in stroke

1шт.

2

700711112

GUIDE

- rod

1шт.

3

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

4

700709299

PISTON

1шт.

5

700709300

ROD

- piston

1шт.

6

700712012

GASKET KIT

KIT - seal and o-ring repair, includes items on art marked with an asterisk

1шт.

Выбрано товаров: 0
