(8-20) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE), (700709155 HYDRAULIC

Запчасти Case IH 8430 (8-20) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE), (700709155 HYDRAULIC (07) - HYDRAULICS

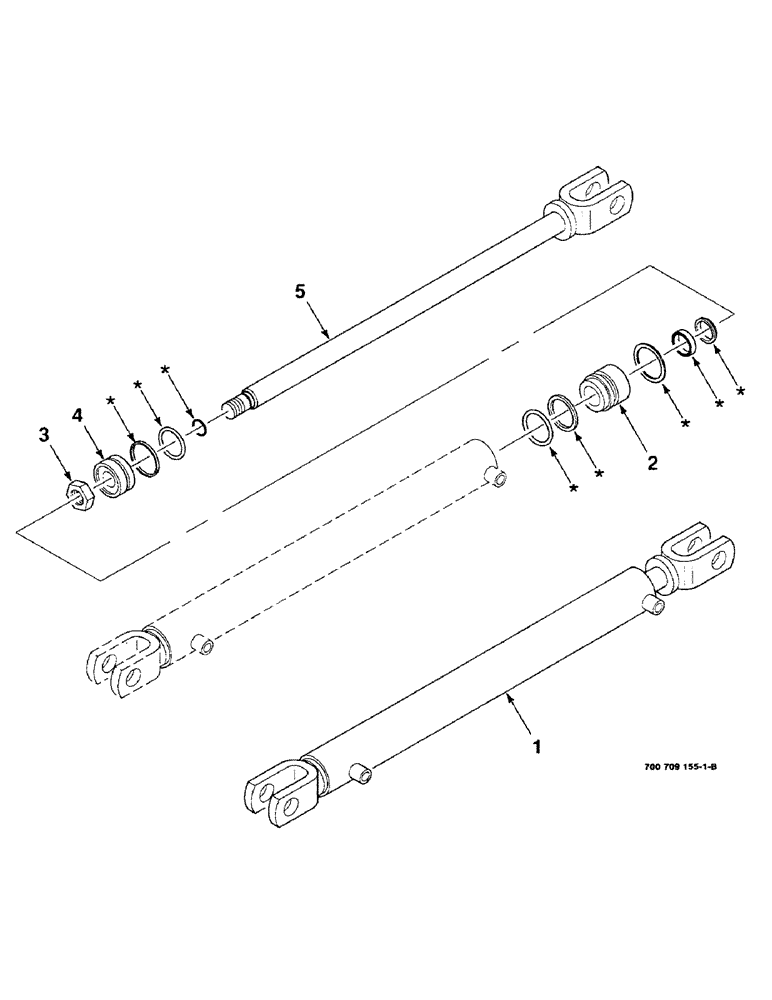

Схема запчастей Case IH 8430 - (8-20) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE), (700709155 HYDRAULIC (07) - HYDRAULICS
5
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700709155

CYLINDER

HYDRAULIC CYLINDER COMPLETE, 2 in I.D. x 20 in stroke

1шт.

2

700707420

GUIDE

- rod

1шт.

3

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

4

700709299

PISTON

1шт.

5

700709300

ROD

- piston

1шт.

6

700709301

KIT

- seal and o-ring repair, includes items on art marked with an asterisk

1шт.
