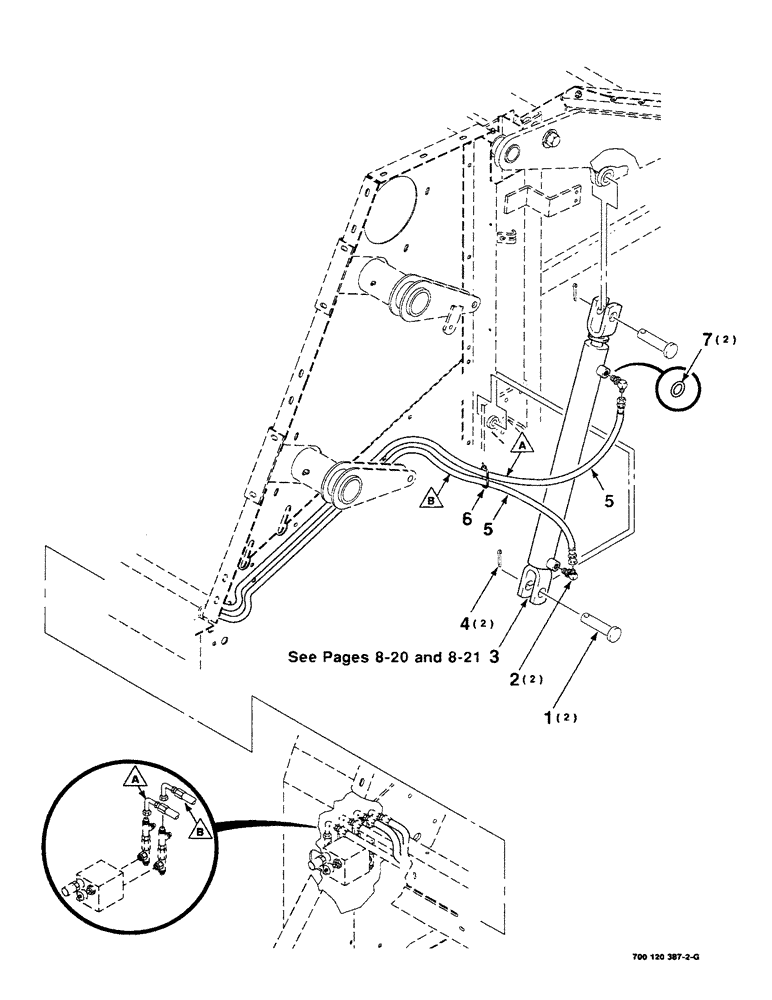

Запчасти Case IH 8430 (8-16) - HYDRAULIC ASSEMBLY - LEFT (TAILGATE) (07) - HYDRAULICS

1

700710292

PIN

1 x 2.718 CLEVIS PIN - special

2шт.

2

7746555

ELBOW

90deg. ELBOW (includes item 7)

2шт.

3

700709155

CYLINDER

- hydraulic (S.N. CFH0012001 thru CFH0012516)

1шт.

700711510

CYLINDER

- hydraulic (S.N. CFH0012517 and later)

1шт.

4

62299

PIN

1/4 x 1-1/2 COTTER PIN

2шт.

5

700709247

HOSE

- hydraulic

2шт.

6

529070

CABLE TIE,368.3mm L

TIE - cable

1шт.

7

738468

O-RING

2шт.
