Запчасти Case IH 8430 (8-12) - HYDRAULIC ASSEMBLY - RIGHT (BALE TENSIONER) (07) - HYDRAULICS

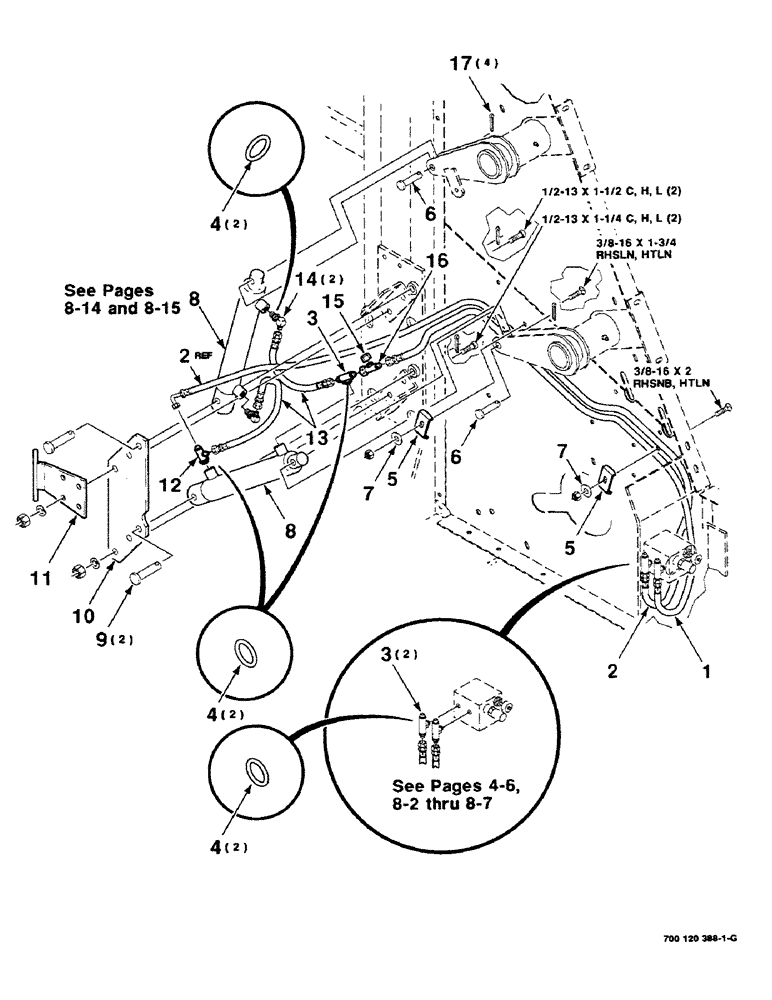

Схема запчастей Case IH 8430 - (8-12) - HYDRAULIC ASSEMBLY - RIGHT (BALE TENSIONER) (07) - HYDRAULICS
7
15
3
4
5
8
11
5
2
4
3
16
12
13
7
14
10
4
17
9
2
1
8
6
6

Артикул

Название

Примечание

Количество

1

700709250

HYDRAULIC HOSE,6.35 mm ID x 1600.00 mm, SAE 100R1

6.35 mm ID x 1600.00 mm, SAE 100R1

1шт.

2

700708924

HOSE ASSY.

HOSE - hydraulic

1шт.

3

8746455

FITTING

TEE - adapter (includes item 4)

3шт.

4

738468

O-RING

6шт.

5

700120636

CLAMP

2шт.

6

63693

PIN

5/8 x 2 CLEVIS PIN

2шт.

7

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

8

700709156

CYLINDER

- hydraulic (S.N. CFH0012001 thru CFH0012869)

2шт.

700712074

CYLINDER

- hydraulic (S.N. CFH0012870 and later)

2шт.

9

863498

CLEVIS PIN

5/8 x 3-1/2 CLEVIS PIN

2шт.

10

700120631

PLATE

- support, cylinder

1шт.

11

700120632

HINGE

WA - shield

1шт.

12

8046658

TEE

- adapter (includes item 4)

1шт.

13

7872864

HOSE ASSY.

HOSE - hydraulic

2шт.

14

7746555

ELBOW

90deg. ELBOW

2шт.

15

791541

SPECIAL NUT

9/16-18 JIC CAP

1шт.

16

700701550

3 WAY CONNECTION

TEE - adapter (includes item 4)

1шт.

17

62182

PIN

5/32 x 1-1/4 COTTER PIN

4шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

2шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

2шт.

68767

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G5

3/8-16 x 1-3/4 RHSNB

1шт.

7700073

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 RHSNB

1шт.

86516876

COVER

1/2-13 H

4шт.

704213

NUT

3/8-16 HTLN

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.
