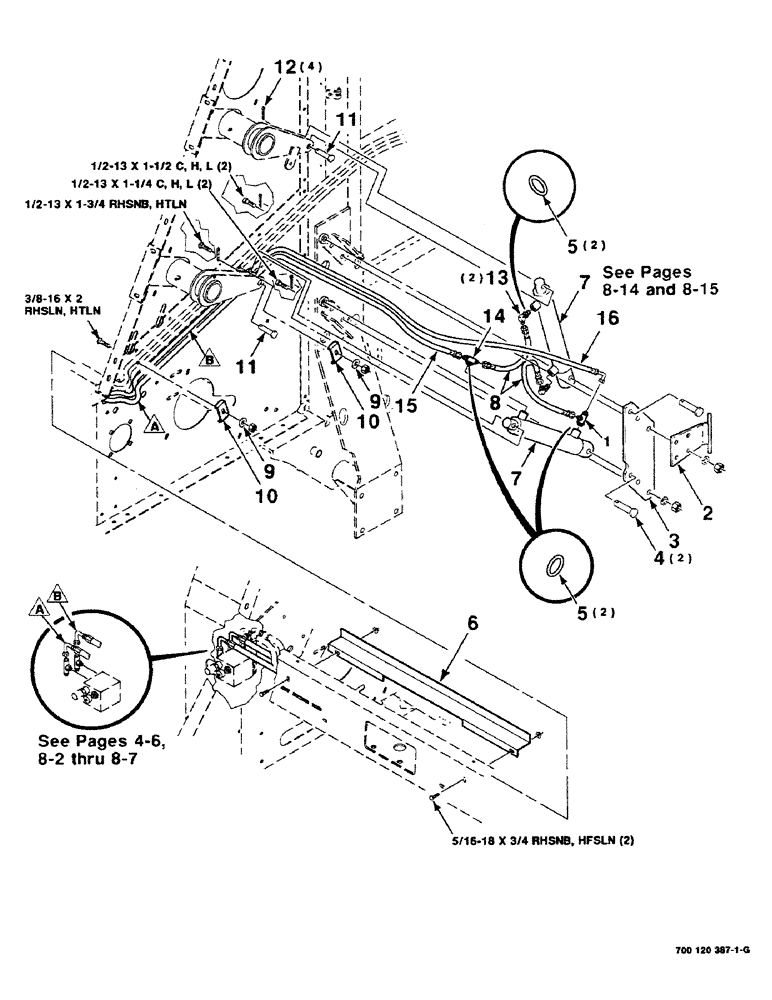

Запчасти Case IH 8430 (8-10) - HYDRAULIC ASSEMBLY - LEFT (BALE TENSIONER) (07) - HYDRAULICS

1

8046658

TEE

- adapter (includes item 4)

1шт.

2

700120632

HINGE

WA - shield

1шт.

3

700120631

PLATE

- support, cylinder

1шт.

4

863498

CLEVIS PIN

5/8 x 3-1/2 CLEVIS PIN

2шт.

5

738468

O-RING

4шт.

6

700120638

SUPPORT

- hose

1шт.

7

700709156

CYLINDER

- hydraulic (S.N. CFH0012001 thru CFH0012869)

2шт.

700712074

CYLINDER

- hydraulic (S.N. CFH0012870 and later)

2шт.

8

7872864

HOSE ASSY.

HOSE - hydraulic

2шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

2шт.

10

700120636

CLAMP

2шт.

11

63693

PIN

5/8 x 2 CLEVIS PIN

2шт.

12

62182

PIN

5/32 x 1-1/4 COTTER PIN

4шт.

13

7746555

ELBOW

90deg. ELBOW

2шт.

14

8746555

TEE - adapter

1шт.

15

700709244

HOSE

- hydraulic

1шт.

16

700709243

HOSE

- hydraulic

1шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

2шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

2шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

68767

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G5

3/8-16 x 1-3/4 RHSNB

1шт.

7700073

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 RHSNB

1шт.

704031

NUT

1/2-13 H

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

2шт.

704213

NUT

3/8-16 HTLN

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.
