(8-08) - HYDRAULIC CYLINDER ASSEMBLY (THREADER), (700709416 HYDRAULIC

Запчасти Case IH 8430 (8-08) - HYDRAULIC CYLINDER ASSEMBLY (THREADER), (700709416 HYDRAULIC (07) - HYDRAULICS

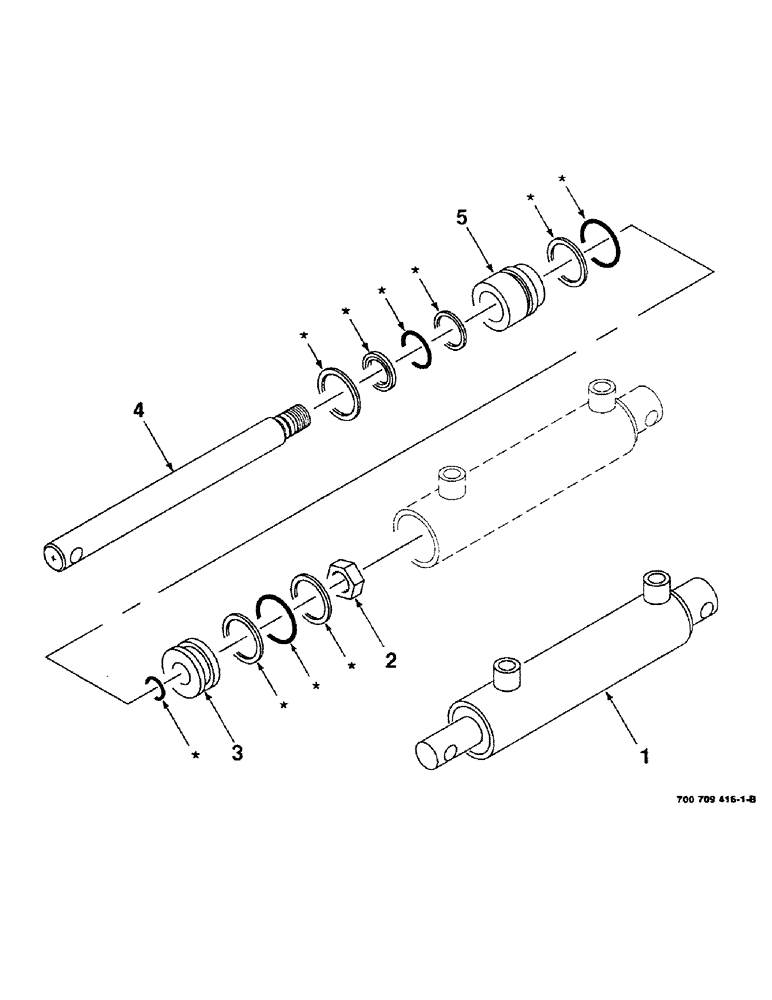

Схема запчастей Case IH 8430 - (8-08) - HYDRAULIC CYLINDER ASSEMBLY (THREADER), (700709416 HYDRAULIC (07) - HYDRAULICS
5
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700709416

CYLINDER

HYDRAULIC CYLINDER COMPLETE, 2 in I.D. x 8 in stroke

1шт.

2

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

3

700707419

PISTON

1шт.

4

700709465

ROD

1шт.

5

700707420

GUIDE

- rod

1шт.

6

700708736

SEAL KIT

AND O-RING REPAIR KIT, includes items on art marked with an asterisk

1шт.

Выбрано товаров: 6
