(8-04) - VALVE ASSEMBLY (BALE TENSION), (700709549 VALVE ASSEMBLY -

Запчасти Case IH 8430 (8-04) - VALVE ASSEMBLY (BALE TENSION), (700709549 VALVE ASSEMBLY - (07) - HYDRAULICS

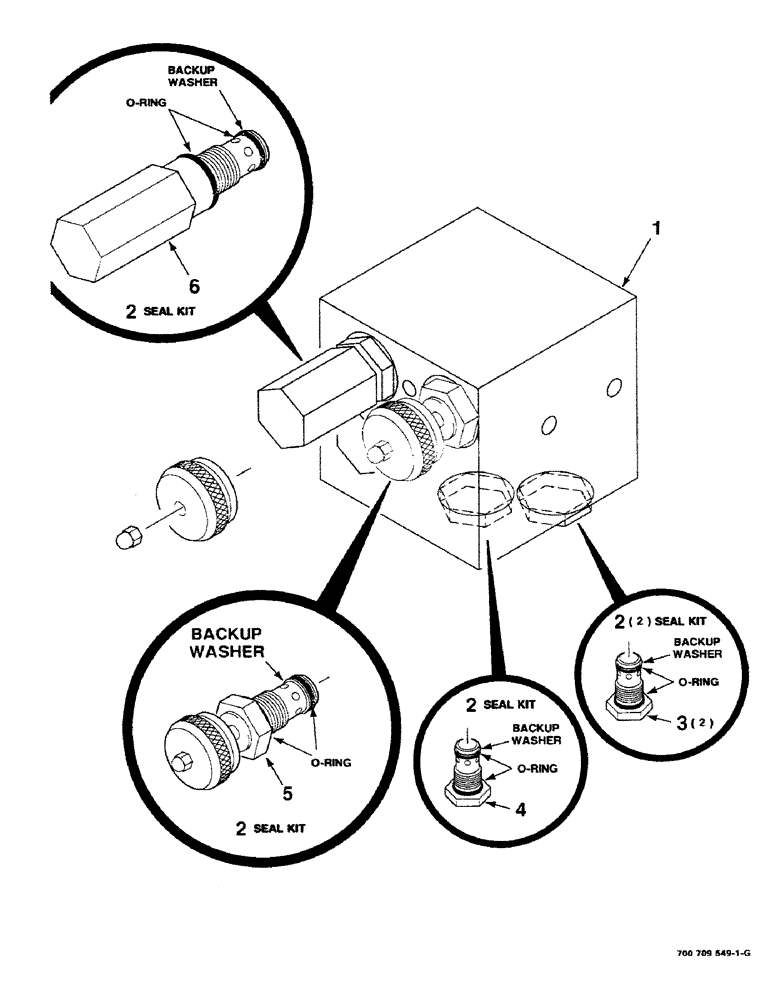

Схема запчастей Case IH 8430 - (8-04) - VALVE ASSEMBLY (BALE TENSION), (700709549 VALVE ASSEMBLY - (07) - HYDRAULICS
2
2
4
2
1
6
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700709549

VALVE

- bale tension complete

1шт.

2

700706154

SEAL KIT

5шт.

3

700707831

VALVE

- check

2шт.

4

700709237

VALVE POPPET

VALVE - check

1шт.

5

700706158

DRAINCOCK/TAP SUPPLY

VALVE - needle (without knob)

1шт.

6

700706157

HYDRAULIC VALVE

VALVE - relief

1шт.

for slow flow orifices see nhfsb026-90. ph 7/13/98

1шт.
