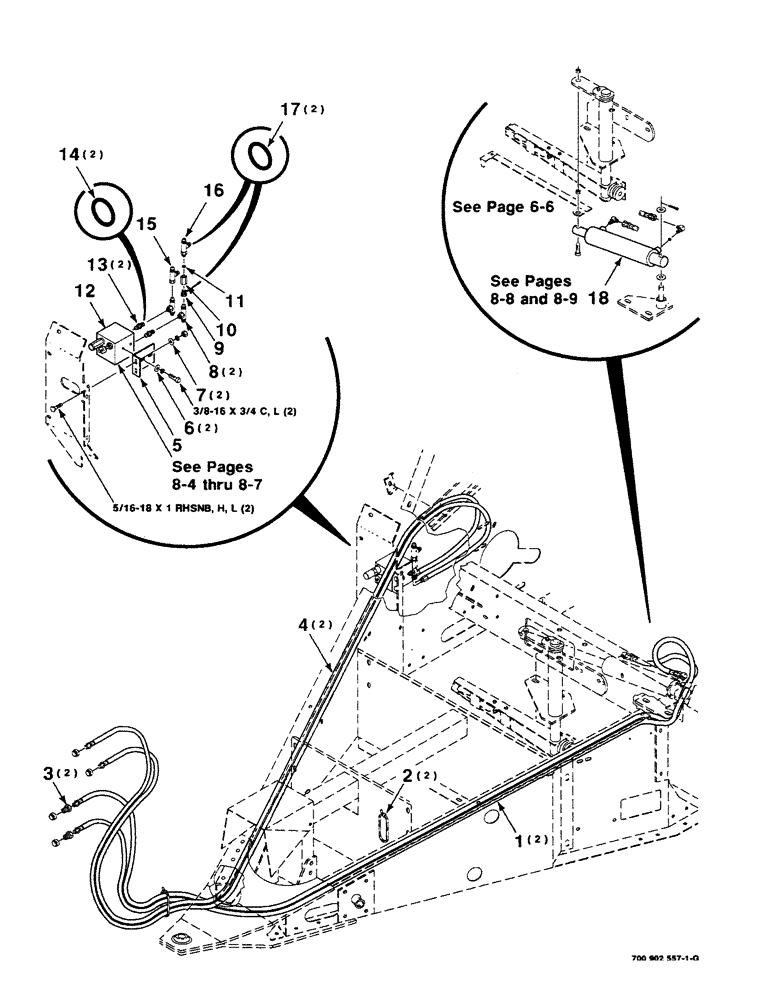

Запчасти Case IH 8430 (8-02) - HYDRAULIC THREADER ASSEMBLY (07) - HYDRAULICS

1

700709245

HOSE

- hydraulic

2шт.

2

7021728

STRAP

TIE - cable

2шт.

3

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer

2шт.

4

700709248

HOSE

- hydraulic

2шт.

5

700120635

ANGLE

- support, valve

1шт.

6

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

7

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

8

8746034

TEE

- adapter

2шт.

9

700709216

ADAPTER

- swivel (includes item 17)

1шт.

10

700120630

COUPLING

1шт.

11

700711576

ORIFICE

(.0935 diameter) standard

1шт.

7037815

ORIFICE

(.081 diameter) alternate

1шт.

12

700709549

VALVE

- bale tensioner (S.N. CFH0012001 thru CFH0012654)

1шт.

700711155

VALVE

- bale tensioner (S.N. CFH0012655 and later)

1шт.

13

7746399

CONNECTOR, ELEC

ADAPTER (includes item 14)

2шт.

14

279706

O-RING

2шт.

15

700701550

3 WAY CONNECTION

TEE - adapter

1шт.

16

8046658

TEE

- adapter (includes item 17)

1шт.

17

738468

O-RING

2шт.

18

700709416

CYLINDER

- hydraulic (S.N. CFH0012001 thru CFH0012764)

1шт.

700712122

CYLINDER

- hydraulic (S.N. CFH0012765 and later)

1шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C

2шт.

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

2шт.

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

705020

LOCK WASHER

5/16"

2шт.

705038

CONTROL VALVE

3/8"

2шт.
