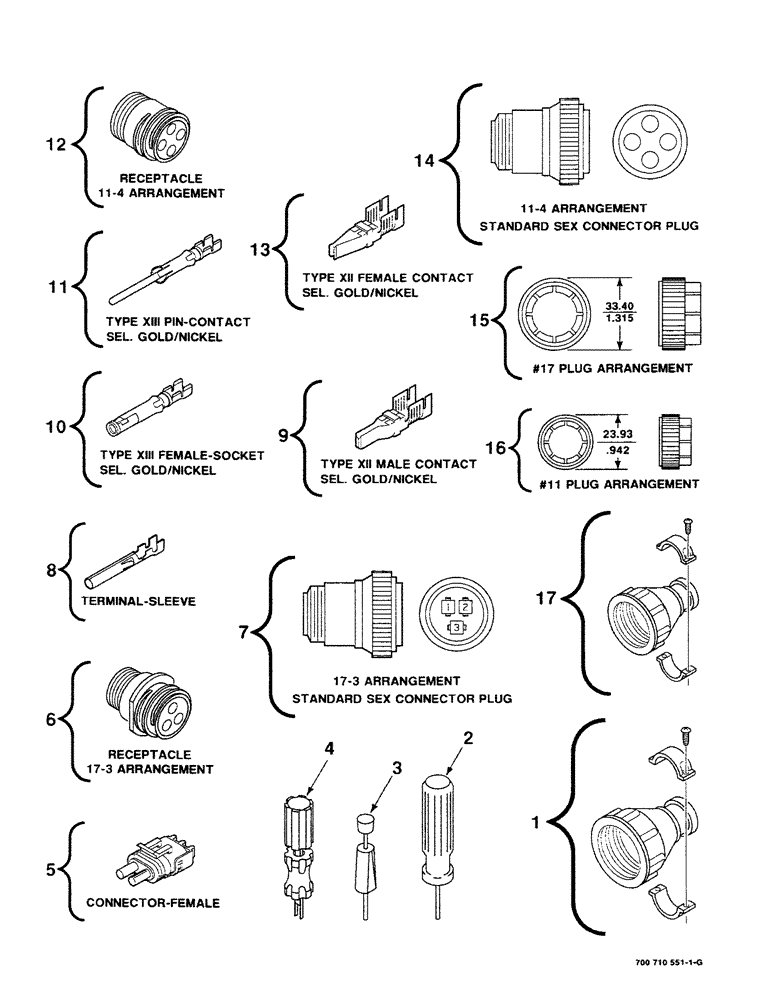

Запчасти Case IH 8430 (4-10) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL

1

700708756

CLAMP

- cable (shell size 17)

1шт.

2

700707012

TERMINAL CONNECTOR

TOOL - connector repair

1шт.

3

700707013

TOOL

- connector repair

1шт.

4

700707014

TERMINAL CONNECTOR

TOOL - connector repair

1шт.

5

700708761

ELEC CONNECTOR,Female

CONNECTOR - Female

1шт.

6

700710659

CONTACT HOUSING

RECEPTACLE

1шт.

7

700709705

WIRE CONNECTOR

PLUG - standard sex connector

1шт.

8

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

- sleeve

1шт.

9

700710621

CONTACT HOUSING,Male, Pole

- male

1шт.

10

700708758

TERMINAL

SOCKET - female

1шт.

11

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

PIN

1шт.

12

700709234

CONNECTION,ELECTRIC

RECEPTACLE

1шт.

13

700710620

TERMINAL

CONTACT - female

1шт.

14

700709232

POWER SOCKET

PLUG

1шт.

15

700707819

LOCKING RING

RING - coupling

1шт.

16

700707817

RING

- coupling

1шт.

17

700709233

CLAMP

- cable (shell size 11)

1шт.
