(4-08) - ACTUATOR ASSEMBLY (700703665 ACTUATOR ASSEMBLY COMPLETE)

Запчасти Case IH 8430 (4-08) - ACTUATOR ASSEMBLY (700703665 ACTUATOR ASSEMBLY COMPLETE) (06) - ELECTRICAL

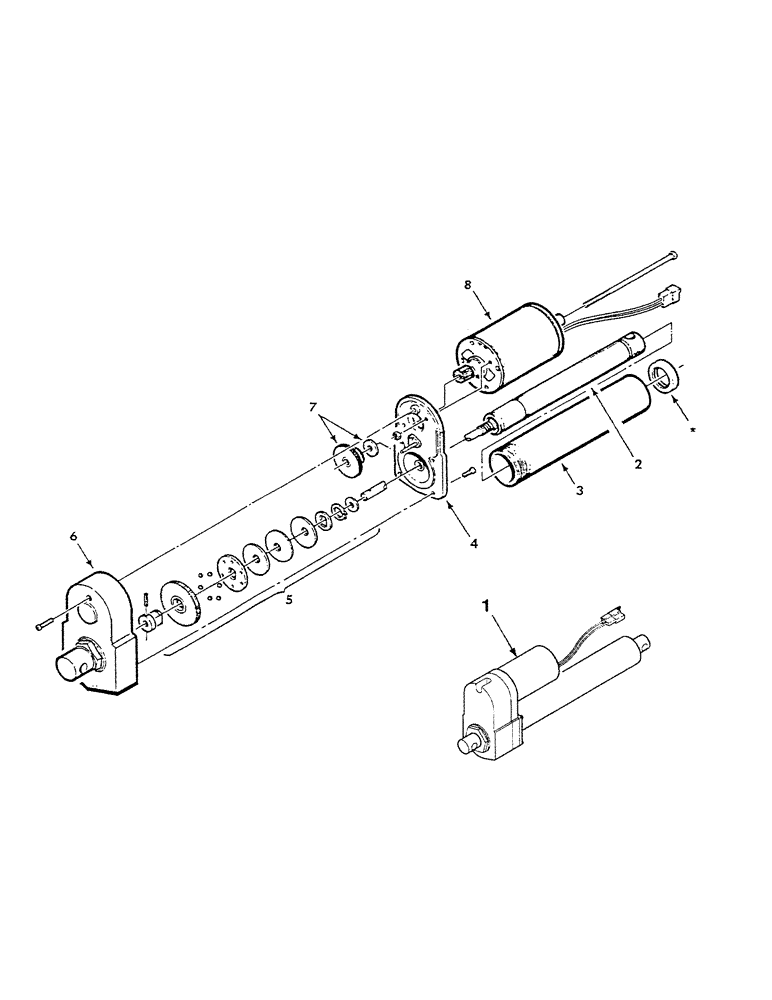

Схема запчастей Case IH 8430 - (4-08) - ACTUATOR ASSEMBLY (700703665 ACTUATOR ASSEMBLY COMPLETE) (06) - ELECTRICAL
4
7
1
2
6
5
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700703665

ACTUATOR

ASSEMBLY COMPLETE

1шт.

2

700704872

JACK SCREW

DRIVE SCREW ASSEMBLY

1шт.

3

700704870

COVER

- tube

1шт.

4

700704869

HOUSING

- front

1шт.

5

700704873

CLUTCH ASSEMBLY

1шт.

6

700704854

HOUSING

- rear

1шт.

7

700704861

GEAR

- intermediate

1шт.

8

700704871

MOTOR, ELECTRIC

MOTOR - electric

1шт.

9

700704856

SEAL KIT

- seal repair, includes items on art marked with an asterisk

1шт.
