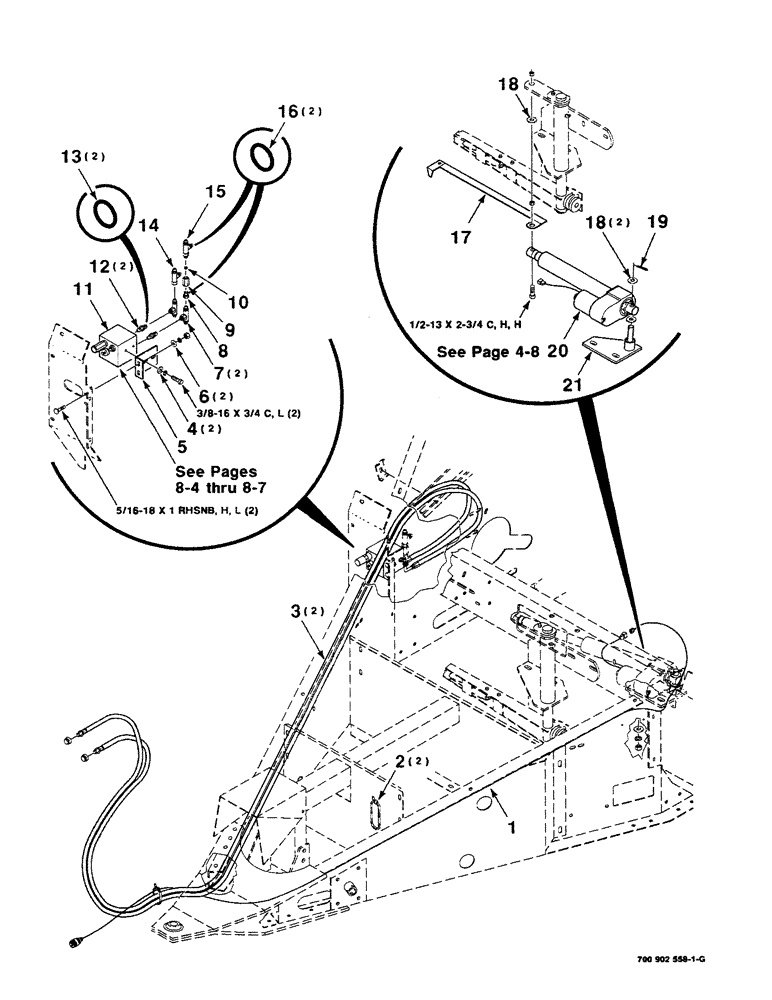

Запчасти Case IH 8430 (4-06) - ELECTRIC THREADER ASSEMBLY (06) - ELECTRICAL

1

700710552

HARNESS

- wiring

1шт.

2

529070

CABLE TIE,368.3mm L

TIE - cable

2шт.

3

700709248

HOSE

- hydraulic

2шт.

4

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

2шт.

5

700120635

ANGLE

- support, valve

1шт.

6

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

7

8746034

TEE

- adapter

2шт.

8

700709216

ADAPTER

- swivel (includes item 16)

1шт.

9

700120630

COUPLING

1шт.

10

700711576

ORIFICE

(.0935 diameter) standard

1шт.

7037815

ORIFICE

(.081 diameter) alternate

1шт.

11

700709549

VALVE

- bale tensioner (S.N. CFH0012001 thru CFH0012654)

1шт.

700711155

VALVE

- bale tensioner (S.N. CFH0012655 and later)

1шт.

12

7746399

CONNECTOR, ELEC

ADAPTER (includes item 13)

2шт.

13

7037781

O-RING

2шт.

14

700701550

3 WAY CONNECTION

TEE - adapter

1шт.

15

8046658

TEE

- adapter (includes item 16)

1шт.

16

738468

O-RING

2шт.

17

700125945

INDICATOR

WA

1шт.

18

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

3шт.

19

62174

PIN

5/32 x 1 COTTER PIN

1шт.

20

700703665

ACTUATOR

- electric

1шт.

21

700125949

MOUNTING PARTS

MOUNT WA

1шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C

2шт.

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 C

1шт.

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

2шт.

704031

NUT

5/16-18 H

2шт.

704015

NUT,5/16"-18, G5

1/2-13 H

2шт.

705020

LOCK WASHER

5/16"

2шт.

705038

CONTROL VALVE

3/8"

2шт.
