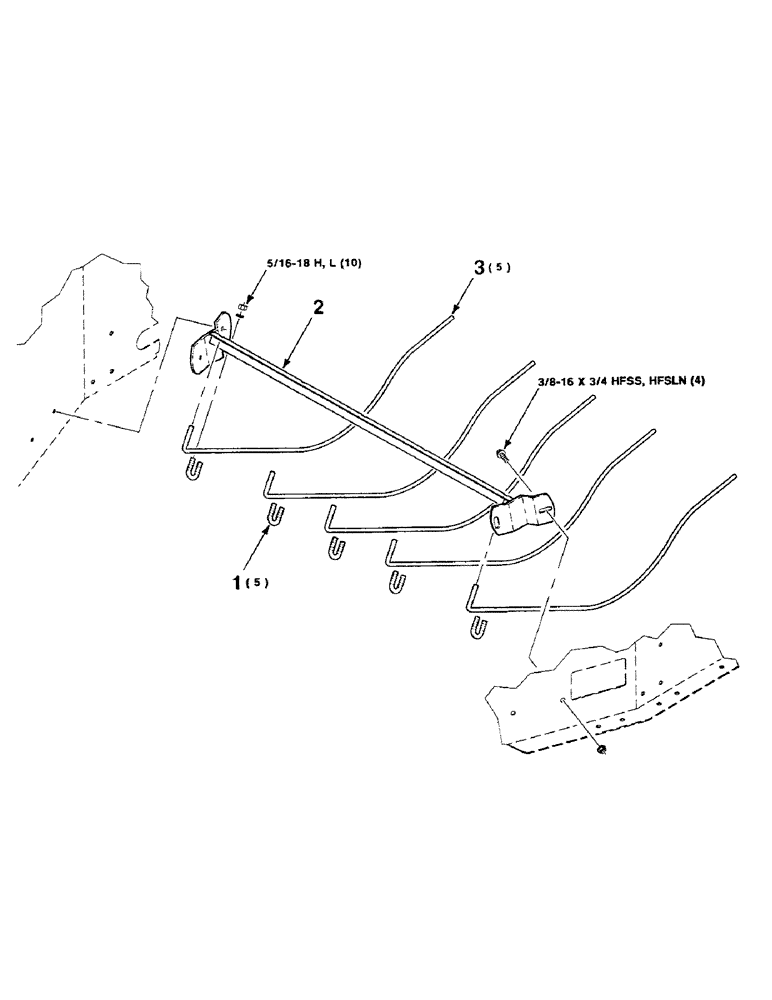

Запчасти Case IH 8430 (3-08) - WINDGUARD ASSEMBLY Pickup

1

700707707

BOLT,U, 5/16" - 18 x 1.181"

U-BOLT

5шт.

2

700120541

SUPPORT

- rod

1шт.

3

700120499

ROD

- windguard

5шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

4шт.

704015

NUT,5/16"-18, G5

5/16-18 H

10шт.

704247

NUT

3/8-16 HFSLN

4шт.

705020

LOCK WASHER

5/16"

10шт.
