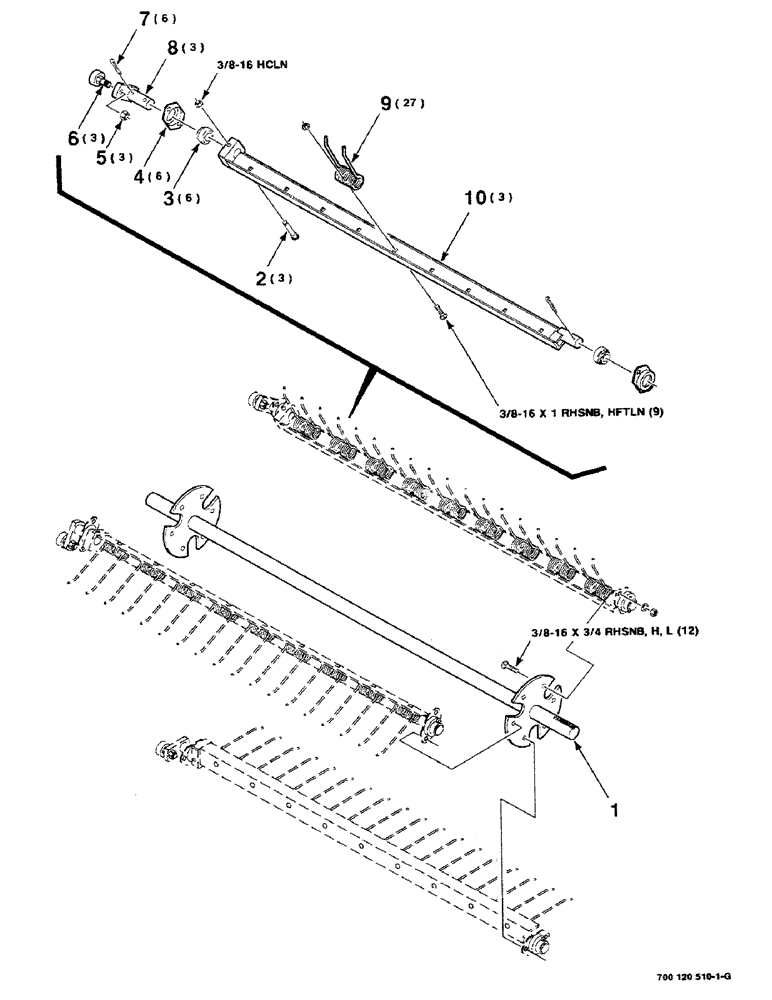

Запчасти Case IH 8430 (3-06) - PICKUP ROTOR ASSEMBLY Pickup

1

700120511

ROTOR

WA - pickup

1шт.

2

701367

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 x 2-1/4 HSHCS

3шт.

3

710392 HCH

BEARING - spherical

6шт.

4

700108622

FLANGED BEARING

FLANGE - bearing

6шт.

5

702700045

LOCK NUT

1/2-20 SPIRAL LOCK NUT

3шт.

6

700705612

CAM FOLLOWER

BEARING - cam follower

3шт.

7

432-1632

COTTER PIN,1/4" x 2"

1/4 x 2 COTTER PIN

6шт.

8

700108618

ARM

CRANK WA

3шт.

700125941

CRANK

WA

3шт.

9

700709210

TOOTH

TINE - double

27шт.

10

700120390

ANGLE BAR

ANGLE - tine

3шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

12шт.

700047

BOLT

3/8-16 x 1 RHSNB

27шт.

701367

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 x 2-1/4 HSHCS

3шт.

704023

NUT,3/8"-16, G5

3/8-16 H

12шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

27шт.

88902

NUT,3/8"-16

3/8-16 HCLN

3шт.

705038

CONTROL VALVE

3/8"

12шт.

NOTE:THE PICKUP TINES ARE BEING SHOT PEENED TO RELIEVE STRESSES WITHIN THE COIL TO IMPROVE TINE LIFE.THE NEW TINE IS 700714459.BEGINNING WITH PIN CFH0113266.

1шт.

complete pickup assembly use part number 700117932.

1шт.
