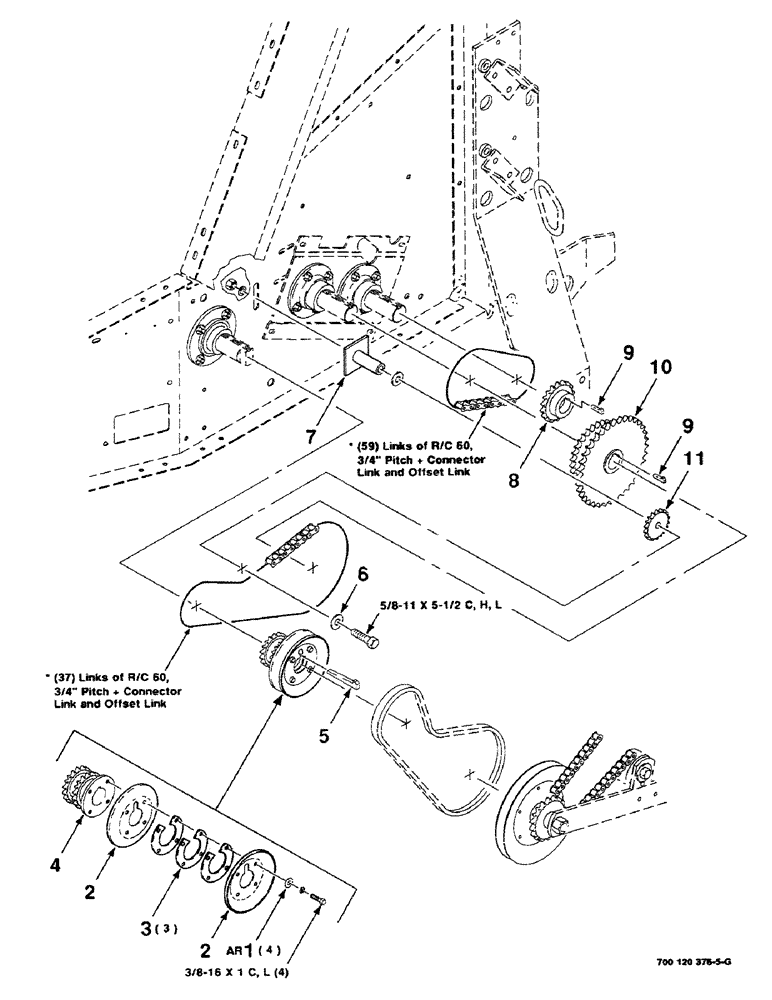

Запчасти Case IH 8430 (2-26) - DRIVE ASSEMBLY (LOWER ROLLERS) Driveline

1

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

4шт.

2

7053523

HALF-ROLLER

SHEAVE - half

2шт.

3

6867717

SHIM

3шт.

4

700120941

SPROCKET ASSY.

SPROCKET - double, 14 tooth, with flange

1шт.

5

761353

KEY

3/8 x 3/8 x 3-1/2 GIB KEY

1шт.

6

705582

WASHER

5/8 HARDENED PLAIN WASHER

1шт.

7

700120934

SUPPORT

- idler, sprocket

1шт.

8

700120928

SPROCKET ASSY.

SPROCKET - 16 tooth

1шт.

9

61432

BUCKET TOOTH KEY

3/8 x 3/8 x 1-1/2 GIB KEY

2шт.

10

700120938

SPROCKET ASSY.

SPROCKET - double, 24 and 36 tooth

1шт.

11

541857R92

SPROCKET,15T

- idler, 15 tooth

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

703934

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 C

1шт.

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.

705038

CONTROL VALVE

3/8"

4шт.

705051

CONNECTING LINK

5/8 L

1шт.
