Запчасти Case IH 8430 (2-24) - DRIVE ASSEMBLY (UPPER RUBBER ROLLER) Driveline

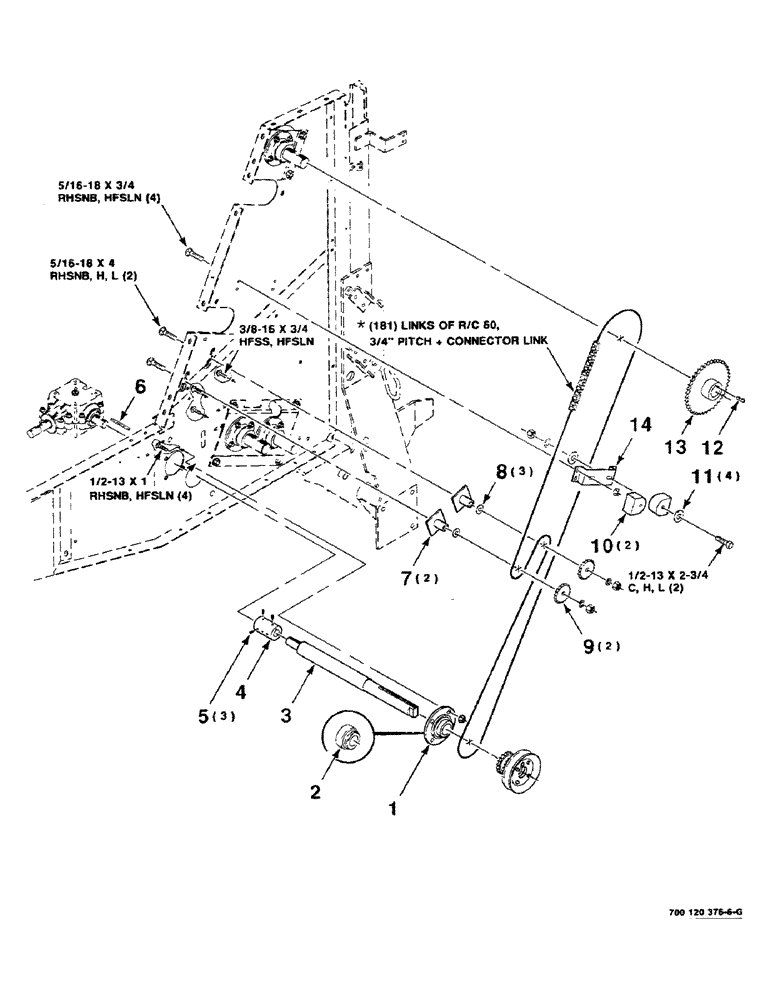

Схема запчастей Case IH 8430 - (2-24) - DRIVE ASSEMBLY (UPPER RUBBER ROLLER) Driveline
3
6
14
12
1
4
5
8
9
2
10
13
7
11

Артикул

Название

Примечание

Количество

1

700120461

HOUSING

BEARING ASSEMBLY (includes item 2)

1шт.

2

714113

SPHERICAL BEARING,1.75" ID x 85 mm OD

BEARING - spherical

1шт.

3

700120454

SHAFT

1шт.

4

6549257

HUB

COUPLER

1шт.

5

69773

LUBE NIPPLE

5/16-18 x 5/16 CPHSSS

3шт.

6

761114

BUCKET TOOTH KEY

1/4 x 1/4 x 3-5/8 KEY

1шт.

7

700120936

SUPPORT

- block

2шт.

8

NLS

NO LONGER SERVICED

5/8 HARDENED PLAIN WASHER

3шт.

9

541857R92

SPROCKET,15T

SPROCKET - idler, 15 tooth

2шт.

10

760728

BLOCK ASSY.

BLOCK - tightener

2шт.

11

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

12

61432

BUCKET TOOTH KEY

3/8 x 3/8 x 1-1/2 GIB KEY

1шт.

13

700101759

SPROCKET

- 39 tooth

1шт.

14

700119916

MOUNTING PARTS

MOUNT - tightener

1шт.

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 C

2шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

4шт.

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

4шт.

7870223

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 RHSNB

2шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

1шт.

86516876

COVER

1/2-13 H

2шт.

704130

NUT,5/8"-11, G5

5/8-11 H

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

4шт.

704247

NUT

3/8-16 HFSLN

1шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

705061

PLUG

5/8"

2шт.

Выбрано товаров: 26
