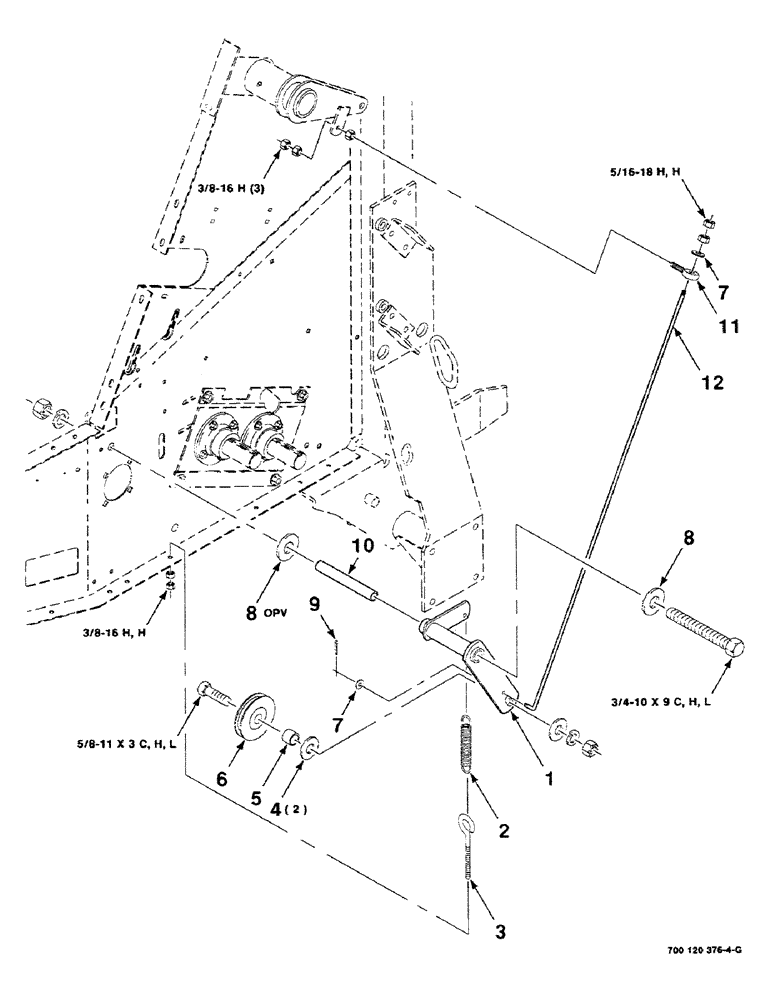

Запчасти Case IH 8430 (2-22) - DRIVE ASSEMBLY (PICKUP BELT TIGHTENER) Driveline

1

700120925

SUPPORT

ARM - idler

1шт.

2

758789

COIL SPRING

SPRING - tension

1шт.

3

NLS

NO LONGER SERVICED

EYEBOLT

1шт.

4

705582

WASHER

5/8 HARDENED PLAIN WASHER

2шт.

5

6484257

SPACER

1шт.

6

662958R91

PULLEY

IDLER - flat

1шт.

7

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

8

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

9

62075

PIN

1/8 x 3/4 COTTER PIN

1шт.

10

700120927

SPACER

1шт.

11

296608

BOLT,3/8" - 16 x 2"

EYEBOLT

1шт.

12

700120453

ROD

- declutcher

1шт.

7701683

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 C

1шт.

703389

3/4-10 x 9

1шт.

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

704023

NUT,3/8"-16, G5

3/8-16 H

5шт.

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.

704528

NUT,3/4"-10, G5

3/4-10 H

1шт.

705061

PLUG

5/8"

1шт.

705111

LOCK WASHER,3/4"

3/4"

1шт.
