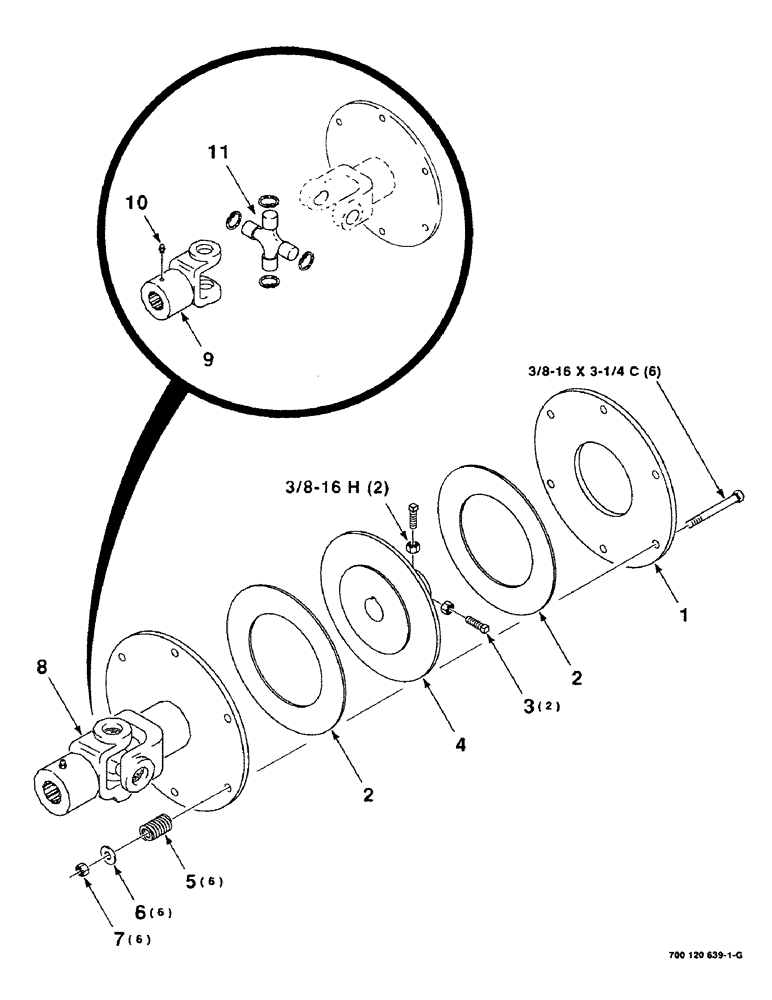

Запчасти Case IH 8430 (2-16) - SLIP CLUTCH ASSEMBLY, (700120639 SLIP CLUTCH ASSEMBLY Driveline

1

6248173

LARGE PLATE

PLATE - pressure

1шт.

2

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

DISC - clutch

2шт.

3

69211

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8-16 x 1 CPSQHSS

2шт.

4

700120640

DISC

WA

1шт.

5

58107

SPRING

- compression

6шт.

6

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

6шт.

7

704122

NUT

3/8-16 HHSN

6шт.

8

700709259

YOKE

U-JOINT ASSEMBLY (Includes Plate)

1шт.

9

810812

YOKE

- splined

1шт.

10

77032

FITTING

1/4-28 ZERK

1шт.

11

845198

KIT

- journal repair

1шт.

873174

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8-16 x 3-1/4 C

6шт.

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

SLIP CLUTCH ASSEMBLY. ORDER COMPONENTS LISTED IN PARTS CATALOG. WE DO HAVE A PRINT ON THIS, BUT THE ASSEMBLY P/N IS NOT SET UP.

1шт.

THE BUSHING WHICH IS PRESSED IN THE OPPOSITE SIDE OF THE U-JOINT ASSEMBLY IS NOT SERVICED SEPARATELY

1шт.
