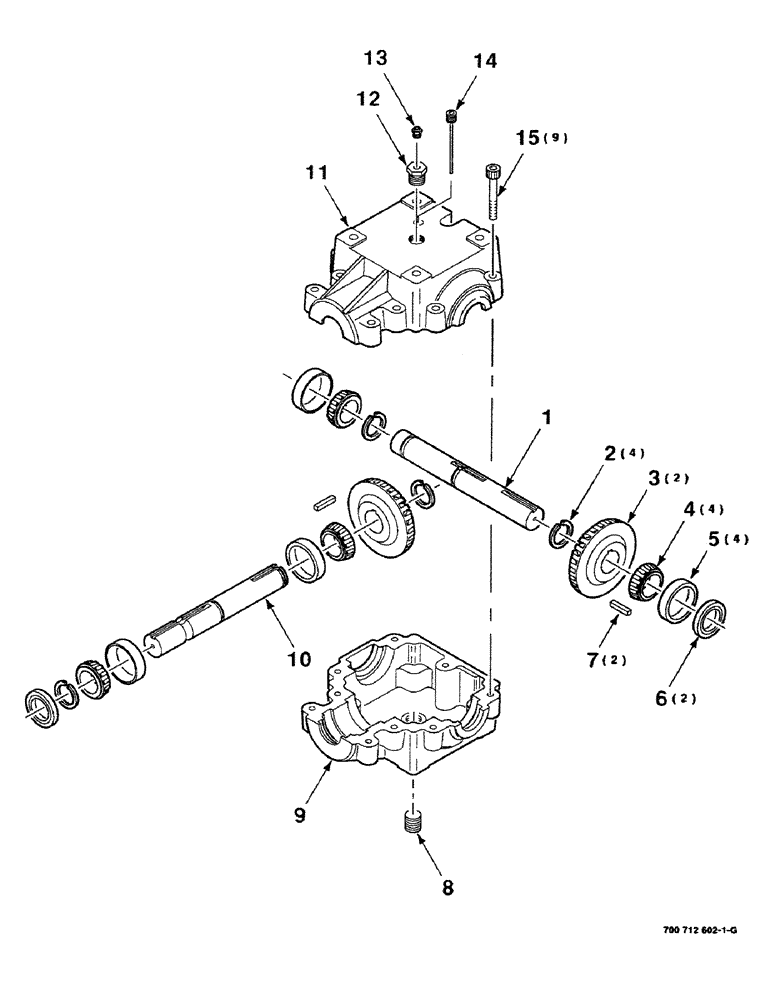

Запчасти Case IH 8430 (2-14) - GEARBOX ASSEMBLY, (700712602 GEARBOX ASSEMBLY COMPLETE) Driveline

1

700712603

SHAFT

- cross

1шт.

2

700712608

OIL SEAL

RING - retaining

4шт.

3

700712610

GEAR

- 21 tooth

2шт.

4

757088

CONE

- tapered bearing

4шт.

5

ST991

BEARING CUP

CUP - tapered bearing

4шт.

6

757153

SEAL

2шт.

7

1707058

KEY

1/4 x 1/4 x 1.20 KEY - special

2шт.

8

746586

PLUG

1/2-14 NPT HEX CSK PIPE PLUG

1шт.

9

700712607

HOUSING

CASTING - tapped holes

1шт.

10

700712605

SHAFT

- pinion

1шт.

11

700712606

HOUSING

CASTING - thru holes

1шт.

12

846642

BUSHING

- reducer

1шт.

13

700710818

VALVE

PRESSURE RELIEF - 5 PSI

1шт.

14

700710819

DIPSTICK

1шт.

15

701367

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 x 2-1/4 HSHCS

9шт.
