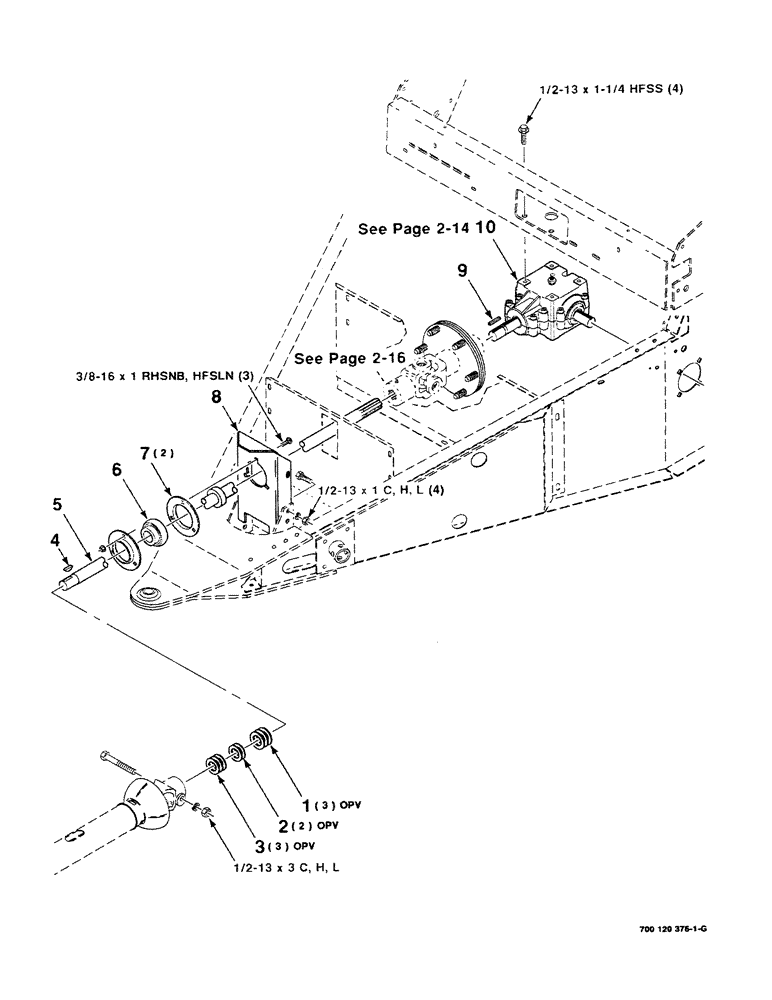

Запчасти Case IH 8430 (2-12) - DRIVE ASSEMBLY (PRIMARY), (S.N.CFH0012765 AND LATER) Driveline

1

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 x 14 GA. NRMB

3шт.

2

52266

WASHER

1-1/4 x 14 GA. NRMB

2шт.

3

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 x 18 GA. NRMB

3шт.

4

761197

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

5

700126741

SHAFT

ASSEMBLY

1шт.

6

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

1шт.

7

825620C1

RETAINER

- bearing

2шт.

8

700120435

SUPPORT

- bearing

1шт.

9

61101

KEY

1/4 x 1/4 x 1-3/4 KEY

1шт.

10

700712602

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

4шт.

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 x 3 C

1шт.

700047

BOLT

3/8-16 x 1 RHSNB

3шт.

7771363

BOLT,Hex Flange, 1/2" - 13 x 1 1/4", SPL

1/2-13 x 1-1/4 HFSS

4шт.

704031

NUT

1/2-13 H

5шт.

700047

BOLT

3/8-16 HFSLN

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.
