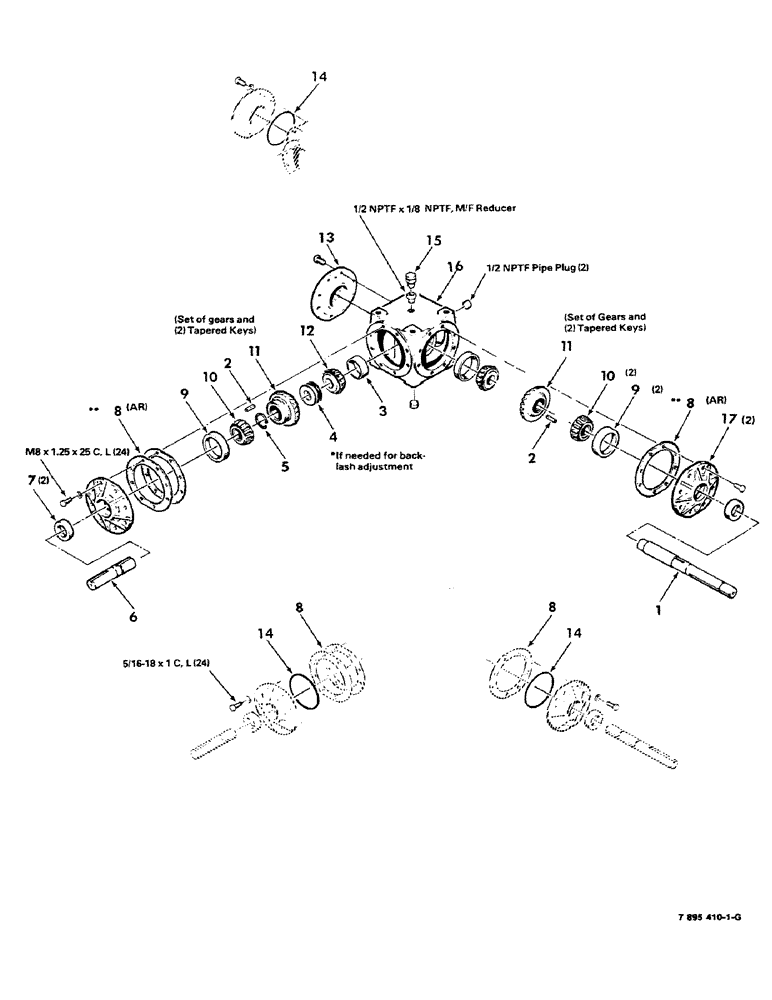

Запчасти Case IH 8430 (2-10) - GEAR BOX ASSEMBLY, (7895410 GEARBOX ASSEMBLY COMPLETE), (S.N Driveline

1

700703554

SHAFT

- long

1шт.

2

753574

KEY

- tapered

1шт.

3

711242

BEARING CUP

CUP - bearing

1шт.

4

753418

SHIM

(.002)

1шт.

4

753426

SHIM

(.005)

1шт.

4

753434

SHIM

(.010)

1шт.

5

757229

RING, SNAP

RING - retainer

1шт.

6

700703549

SHAFT

- short

1шт.

7

757153

SEAL

2шт.

8

1702216

GASKET

- aluminum (.015)

6шт.

8

1702224

GASKET

- aluminum (.005)

3шт.

8

1702232

GASKET

- aluminum (.003)

3шт.

9

710350

BRACKET,69.037 mm OD x 15.875 mm

- bearing

3шт.

10

757088

CONE

- bearing

3шт.

11

8806317

GEAR-SET

GEAR SET (MATCHED) AND TWO TAPERED KEYS

1шт.

12

711507

ROLLER BEARING,31.77 mm ID x 16.764 mm

CONE - bearing

1шт.

13

757054

CAP

- blank

1шт.

14

7037518

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

3шт.

15

7751605

BREATHER

PLUG - vented

1шт.

16

700100292

HOUSING

1шт.

17

757120

CAP

2шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 C

24шт.

7772197

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8

M8 x 1.25 x 25 C Class 8.8

24шт.

700700324

SPRING WASHER

M8 L

24шт.
