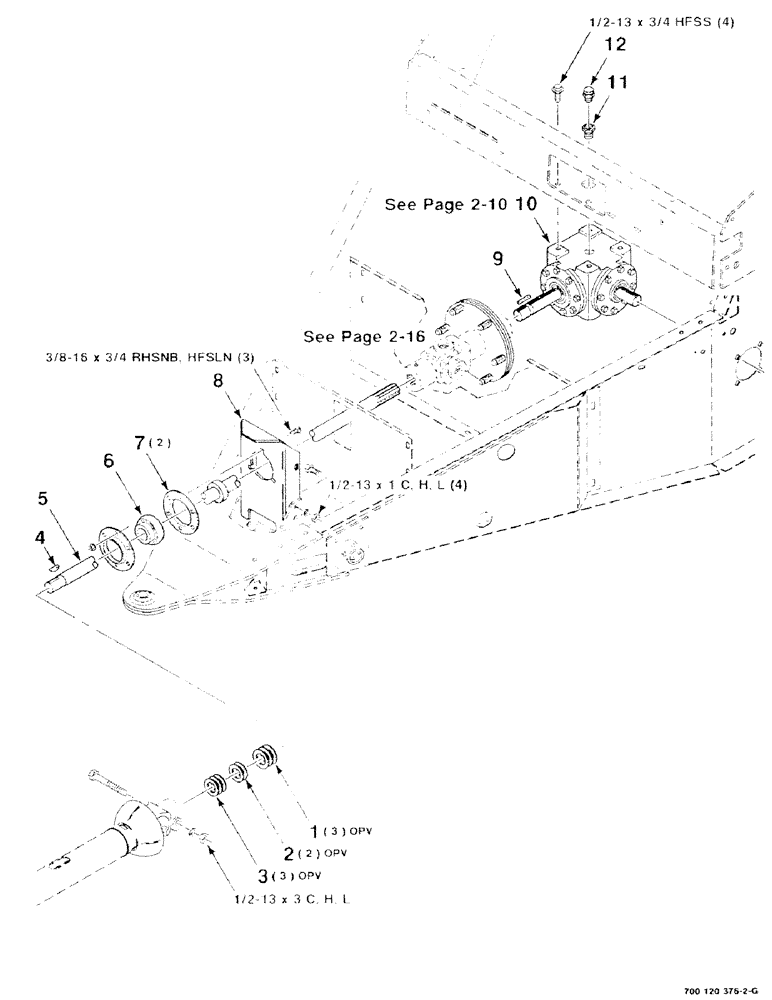

Запчасти Case IH 8430 (2-08) - DRIVE ASSEMBLY (PRIMARY), (S.N. CFH0012001 THRU CFH0012764) Driveline

1

52274

WASHER

1-3/8 x 14 GA. NRMB

3шт.

2

52266

WASHER

1-1/4 x 14 GA. NRMB

2шт.

3

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 x 18 GA. NRMB

3шт.

4

761197

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

5

700120456

SHAFT

ASSEMBLY

1шт.

6

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

1шт.

7

712612

FLANGE

- bearing

2шт.

8

700120435

SUPPORT

- bearing

1шт.

9

61101

KEY

1/4 x 1/4 x 1-3/4 KEY

1шт.

10

7895410

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

11

846642

BUSHING

- reducer

1шт.

12

7751605

BREATHER

PLUG - vent

1шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

4шт.

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 x 3 C

1шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

3шт.

7771272

BOLT,Hex Serr, 1/2" - 13 x 3/4"

1/2-13 x 3/4 HFSS

4шт.

86516876

COVER

1/2-13 H

5шт.

700047

BOLT

3/8-16 HFSLN

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.
