Запчасти Case IH 8430 (2-06) - IMPLEMENT DRIVELINE ASSEMBLY (NEAPCO) Driveline

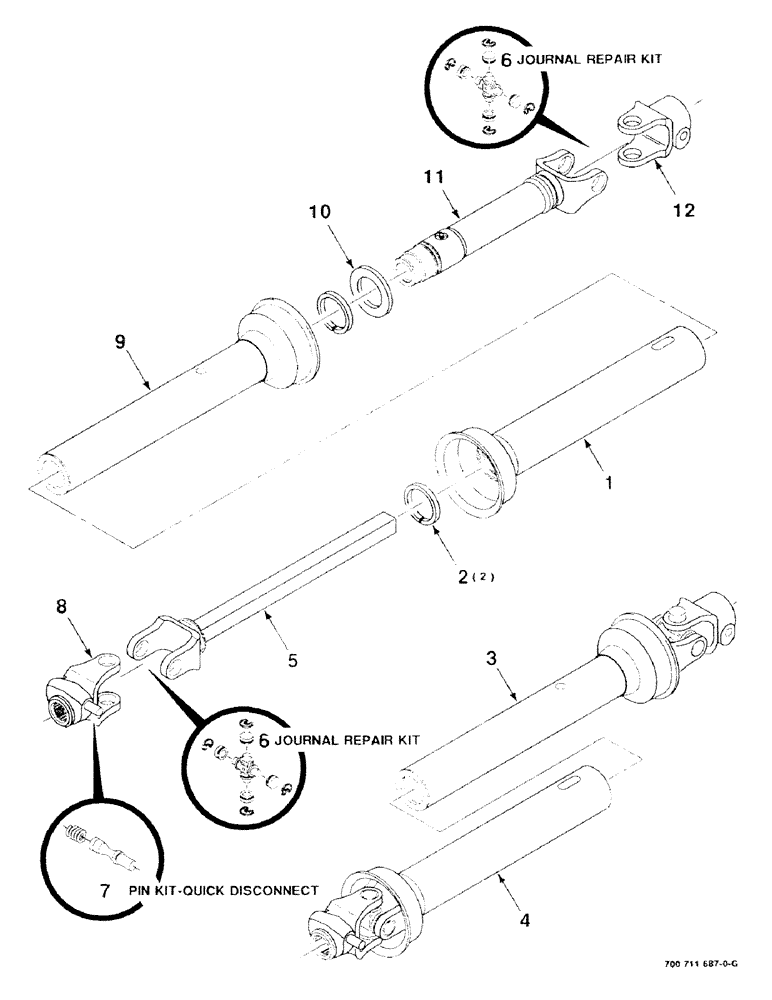

Схема запчастей Case IH 8430 - (2-06) - IMPLEMENT DRIVELINE ASSEMBLY (NEAPCO) Driveline
6
3
10
5
4
9
2
7
6
8
1
12
11

Артикул

Название

Примечание

Количество

1

700711674

SHIELD

OUTER - shield

1шт.

2

700711688

SHIELD

BEARING - nylong, shield

2шт.

3

700711692

PTO

IMPLEMENT HALF

1шт.

4

700711691

PTO

TRACTOR HALF (540 RPM)

1шт.

5

700709720

YOKE

AND SHAFT

1шт.

6

753772

KIT

JOURNAL REPAIR KIT

2шт.

7

700708364

KIT

PIN KIT - quick disconnect

1шт.

8

700708365

YOKE

ASSEMBLY (Includes Item 7)

1шт.

9

700711675

SHIELD

INNER - shield

1шт.

10

700711690

NYLON BEARING

BEARING - nylon

1шт.

11

700709719

YOKE

AND TUBE

1шт.

12

7813843

YOKE

CLAMP - yoke

1шт.

for 8430 pto 540 rpm, plastic with internal nylon lining, see 8210 and 8220

1шт.

Выбрано товаров: 13
