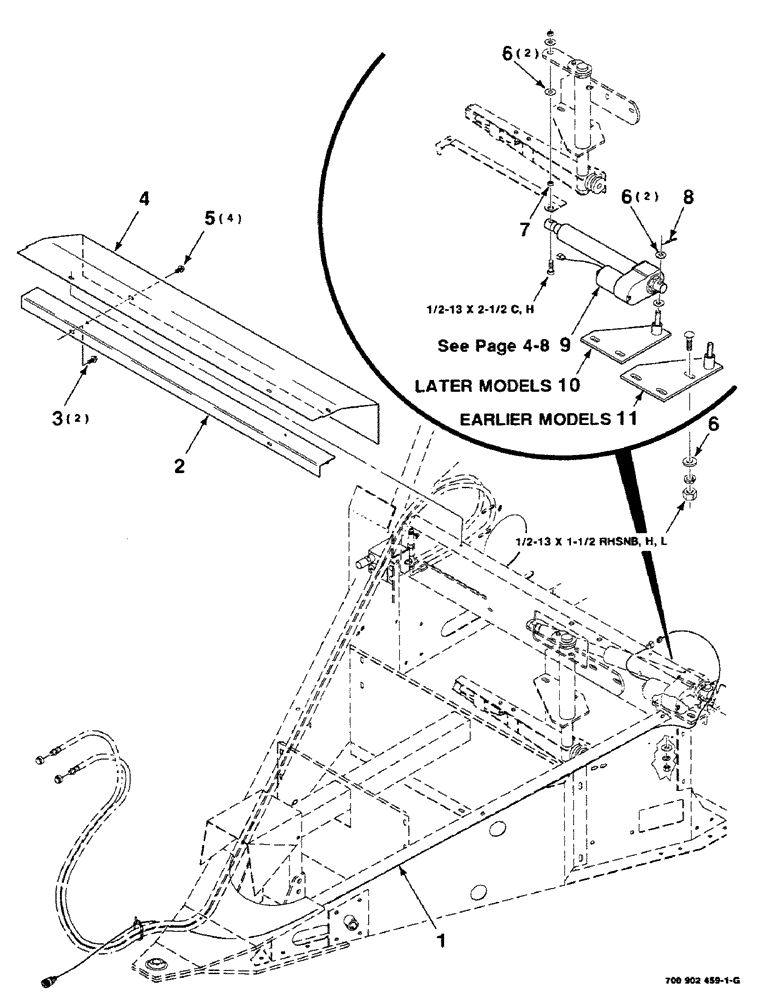

Запчасти Case IH 8430 (9-18) - ELECTRIC THREADER KIT (PAGES 9-18 THRU 9-20), (HK50581 Decals & Attachments

1

700710552

HARNESS

- wiring

1шт.

2

700122491

CHANNEL

1шт.

3

701953

SELF-TAP SCREW

5/16-18 x 3/4 HWHTCTS

2шт.

4

700122489

SHIELD

1шт.

5

772525

WASHER

5/16-18 x 1/2 HWHTCTS

4шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

5шт.

7

704056

NUT

1/2-13 HEX JAM NUT

1шт.

8

62174

PIN

5/32 x 1 COTTER PIN

1шт.

9

700703665

ACTUATOR

- electric

1шт.

10

700125949

MOUNTING PARTS

MOUNT WA (LATER MODELS)

1шт.

11

700122486

MOUNTING PARTS

MOUNT WA (EARLIER MODELS)

1шт.

70922526

SCREW

1/2-13 x 2-1/2 C

1шт.

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 RHSNB

1шт.

704015

NUT,5/16"-18, G5

1/2-13 H

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
