(9-14) - GATHERING WHEEL KIT - CONTINUED, (HK50559 GATHERING WHEEL

Запчасти Case IH 8430 (9-14) - GATHERING WHEEL KIT - CONTINUED, (HK50559 GATHERING WHEEL Decals & Attachments

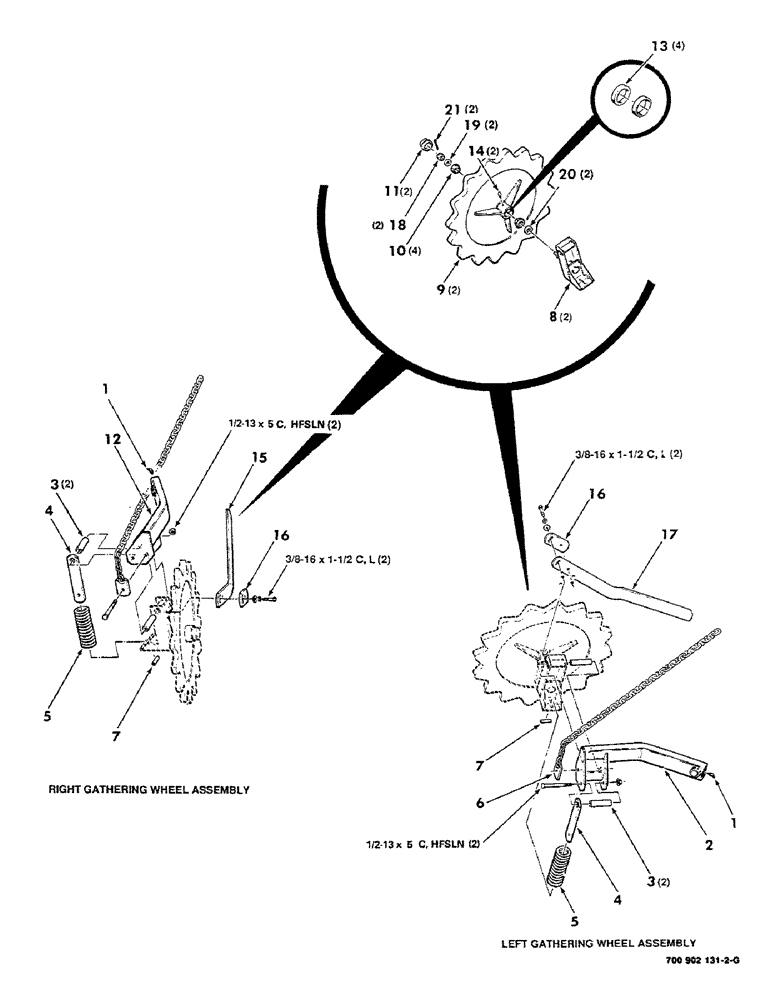

Схема запчастей Case IH 8430 - (9-14) - GATHERING WHEEL KIT - CONTINUED, (HK50559 GATHERING WHEEL Decals & Attachments
4
16
12
7
15
21
17
1
3
10
13
7
2
4
3
1
19
18
16
20
9
11
14
5
6
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

77040

FITTING

1/4-28 x 45deg. ZERK

2шт.

2

700117240

STRUT

- left

1шт.

3

700117257

SPACER

4шт.

4

700117013

STRAP

- link

2шт.

5

700707651

SPRING

- compression

2шт.

6

700117256

SUPPORT

CHAIN - support

2шт.

7

1714773

PIN,1/2" x 2", Coiled

2шт.

8

700117270

SPINDLE

- gathering wheel

2шт.

9

700117265

WHEEL

- gathering (includes cups)

2шт.

10

711044

ROLLER BEARING

BEARING - cone

4шт.

11

700709032

CAP

- hub

2шт.

12

700117241

SLIDE

STRUT - right

1шт.

13

711036

BEARING CUP,45.237 mm OD x 12.065 mm

CUP - bearing

4шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

15

700120644

DEFLECTOR

- right

1шт.

16

700120645

REINFORCEMENT

2шт.

17

700120643

DEFLECTOR

- left

1шт.

18

704916

SLOTTED NUT,5/8"-11, G5

5/8-11 SLOTTED HEX NUT

2шт.

19

705632

WASHER

5/8 NARROW PLAIN WASHER

2шт.

20

705723

WASHER

3/4 NARROW PLAIN WASHER

2шт.

21

62174

PIN

5/32 x 1 COTTER PIN

2шт.

22

705533

WASHER

3/8 HARDENED PLAIN WASHER

4шт.

703603

SCREW

3/8-16 x 1-1/2 C

4шт.

7701279

BOLT

1/2-13 x 5 C

4шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

4шт.

705038

CONTROL VALVE

3/8"

4шт.
