Запчасти Case IH 8430 (9-12) - GATHERING WHEEL KIT, (HK50559 GATHERING WHEEL KIT COMPLETE) Decals & Attachments

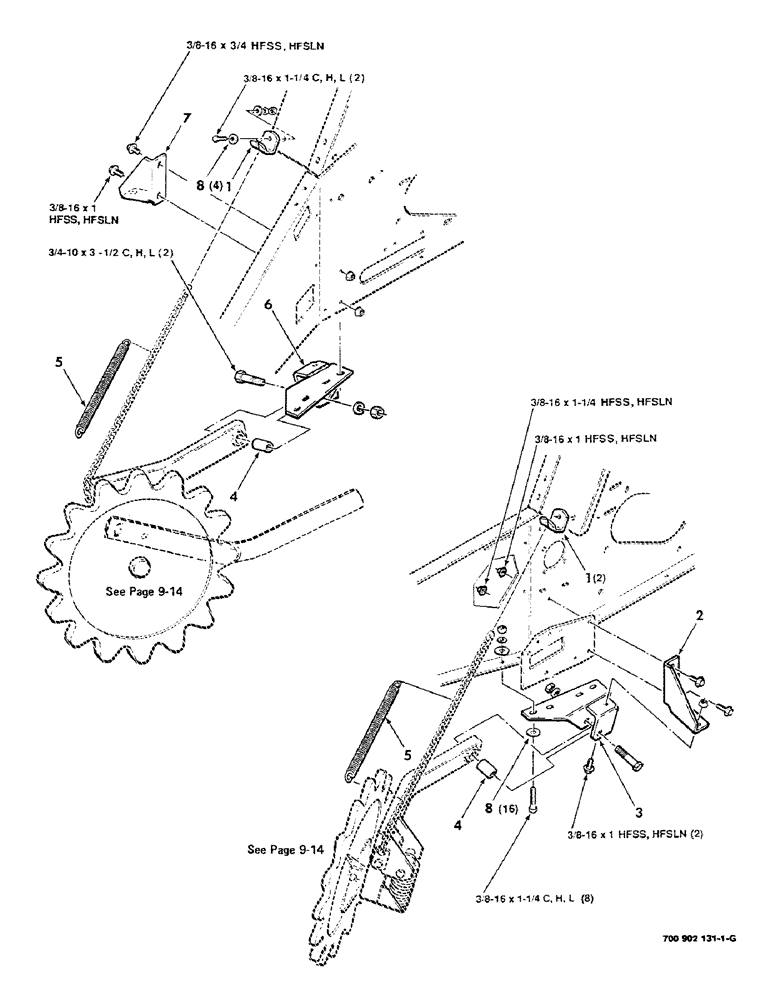

Схема запчастей Case IH 8430 - (9-12) - GATHERING WHEEL KIT, (HK50559 GATHERING WHEEL KIT COMPLETE) Decals & Attachments
7
4
6
8
1
2
8
3
4
5
5

Артикул

Название

Примечание

Количество

1

700101727

SUPPORT

ANCHOR - chain

2шт.

2

700117258

BRACE

- support, left

1шт.

3

700117162

SUPPORT

- strut, left

1шт.

4

700117287

BUSHING

SPACER

2шт.

5

51200296

SPRING

- tension

2шт.

6

700117163

SUPPORT

- strut, right

1шт.

7

700117260

BRACE

- support, right

1шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

20шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

10шт.

7772122

BOLT

3/4-10 x 3-1/2 C

2шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

1шт.

7703424

FLANGE BOLT,Hex, Serr, 3/8" - 16 x 1"

3/8-16 x 1 HFSS

2шт.

7771470

BOLT,Hex Serr, 3/8" - 16 x 1 1/4"

3/8-16 x 1-1/4 HFSS

1шт.

7701592

FLANGE BOLT,Hex Serr, 1/2" - 13 x 1"

1/2-13 x 1 HFSS

2шт.

704023

NUT,3/8"-16, G5

3/8-16 H

10шт.

704528

NUT,3/4"-10, G5

3/4-10 H

2шт.

704247

NUT

3/8-16 HFSLN

4шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

2шт.

705038

CONTROL VALVE

3/8"

10шт.

705111

LOCK WASHER,3/4"

3/4"

2шт.

Выбрано товаров: 20
