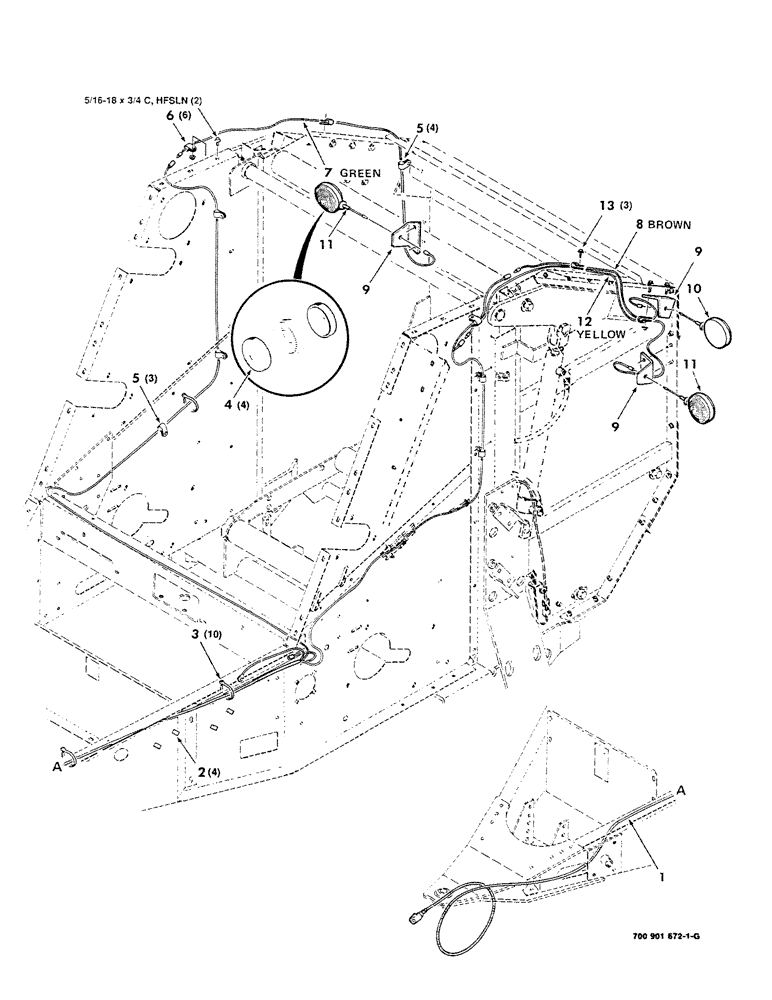

Запчасти Case IH 8430 (9-10) - WARNING LIGHT KIT, (HK50456 WARNING LIGHT KIT COMPLETE) Decals & Attachments

1

700707926

HARNESS

- wire

1шт.

2

722496

CLIP

- line

4шт.

3

722470

MOUNTING CLIP

TIE - nylon

10шт.

4

722017

LENS

- light, flasher

4шт.

5

751628

CLAMP

- line

7шт.

6

700708090

CLAMP

- line

6шт.

7

700708075

ELECTRICAL WIRE

WIRE - electric

1шт.

8

700708074

ELECTRICAL WIRE

WIRE - electric

1шт.

9

700114560

ANGLE - mounting, light

3шт.

10

700706634

STOP LIGHT

LIGHT - stop

1шт.

11

700708036

SIDE LAMP ASSY

LIGHT - flasher

2шт.

12

700705121

WIRE

- electric

1шт.

13

701607

BRACKET

1/4-20 x 1/2 HWHTCTS

7шт.

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 C

5шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

6шт.

704239

FRONT AXLE

5/16-18 HFSLN

5шт.
