(9-07) - HYDRAULIC REGULATOR ASSEMBLY (THREADER), (700707258

Запчасти Case IH 8430 (9-07) - HYDRAULIC REGULATOR ASSEMBLY (THREADER), (700707258 Decals & Attachments

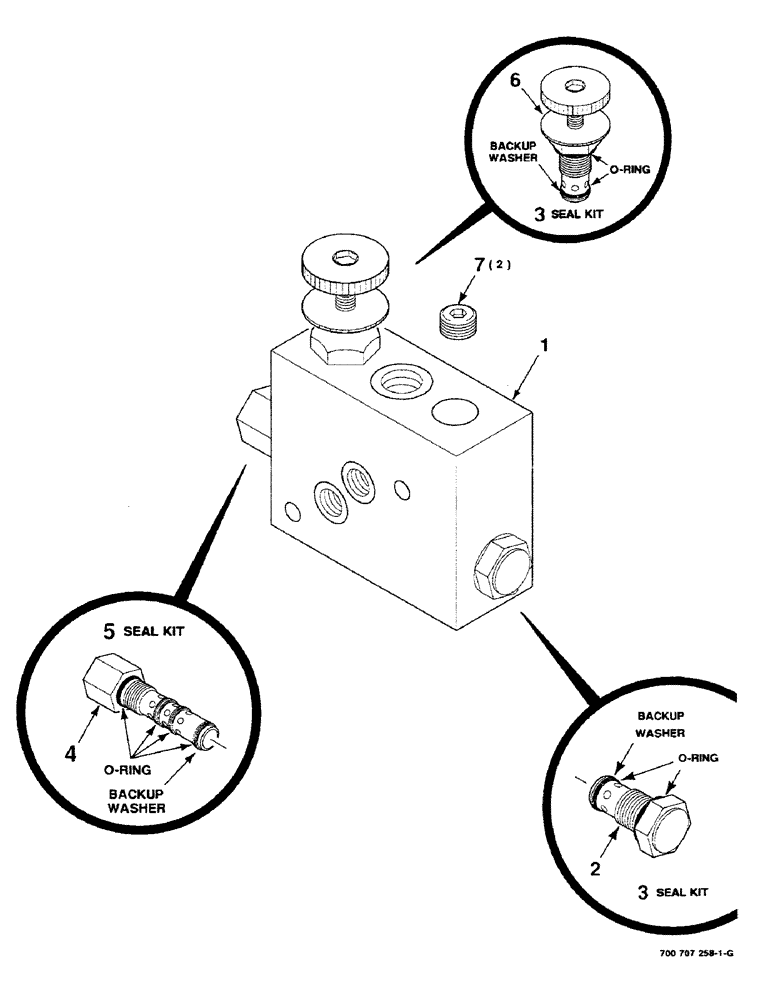

Схема запчастей Case IH 8430 - (9-07) - HYDRAULIC REGULATOR ASSEMBLY (THREADER), (700707258 Decals & Attachments
2
1
4
3
5
6
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707258

GOVERNOR

REGULATOR ASSEMBLY COMPLETE

1шт.

2

700707839

VALVE

CHECK VALVE ASSEMBLY - poppet

1шт.

3

700706154

SEAL KIT

2шт.

4

700707838

SPOOL

ASSEMBLY - valve

1шт.

5

700707843

SEAL KIT

1шт.

6

700707837

VALVE

- flow control, knob

1шт.

7

700707840

PLUG

2шт.
