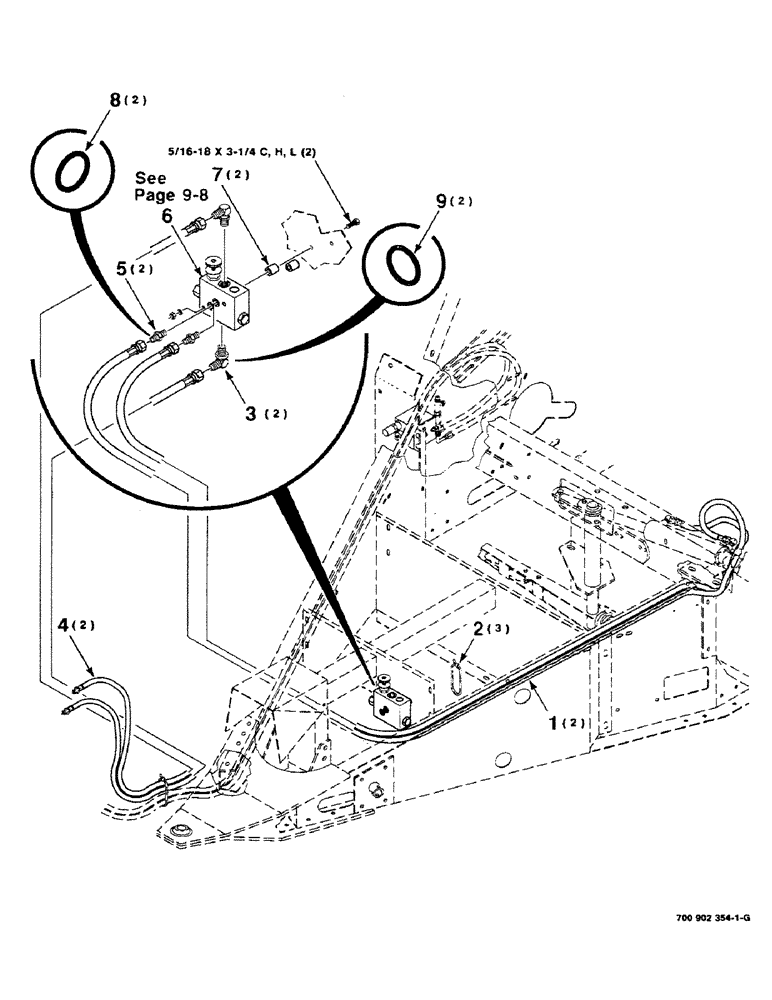

Запчасти Case IH 8430 (9-06) - HYDRAULIC THREADER KIT (FLOW CONTROL), (HK50574 HYDRAULIC Decals & Attachments

1

1714625

HOSE

- hydraulic

2шт.

2

722470

MOUNTING CLIP

TIE - cable

3шт.

3

7791767

ELBOW

90 deg. ELBOW (includes item 9)

2шт.

4

700709807

HYDRAULIC HOSE,9.65 mm ID x 1925.00 mm, SAE 100R2

9.65 mm ID x 1925.00 mm, SAE 100R2

2шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

(includes Ref. 8) 7/16"-20, 37º x 7/16"-20, O-Ring

1шт.

6

700707258

GOVERNOR

REGULATOR - flow, hydraulic

1шт.

7

6260244

SPACER

2шт.

8

7040397

O-RING

2шт.

9

279706

O-RING

2шт.

7773997

BOLT

5/16-18 x 3-1/4 C

2шт.

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

705020

LOCK WASHER

5/16"

2шт.
