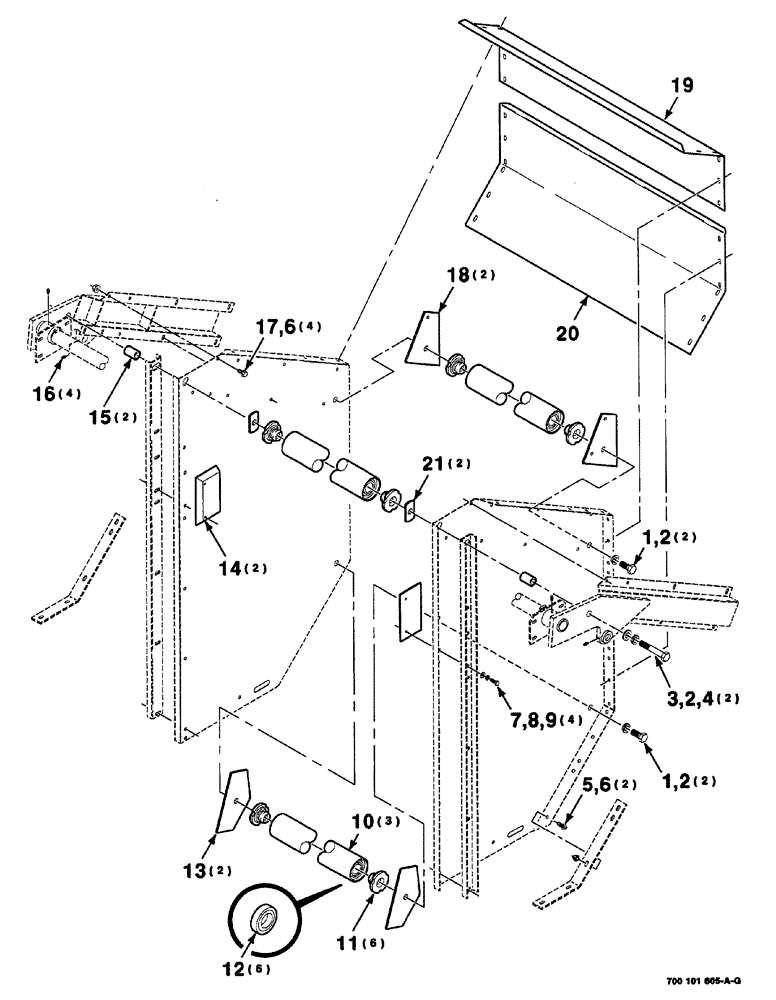

Запчасти Case IH 8420 (05-06) - TAILGATE ASSEMBLY (S/N CFH0054742 AND LATER) (16) - BALE EJECTOR

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

3

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

SCREW hex cap, 3/4"-10 x 4-1/2"

2шт.

4

705566

WASHER

hardened plain, 3/4"

2шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

6

231-5146

FLANGE NUT,3/8"-16

6шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

4шт.

10

700101606

CONVEYOR ROLLER

ASSY., Includes: Ref. 12

3шт.

11

700100927

HUB

roller

6шт.

12

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

6шт.

Part of Roller Assy. P/N 700101606

1шт.

13

700129409

PLATE

2шт.

14

700127422

WEDGE

bale

2шт.

15

6288963

SPACER

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

18

700129408

PLATE

2шт.

19

700101628

PANEL

SHIELD upper

1шт.

20

700153937

PANEL ASSY. lower, includes decals

1шт.

21

700101588

SPACER

SPACER

2шт.
