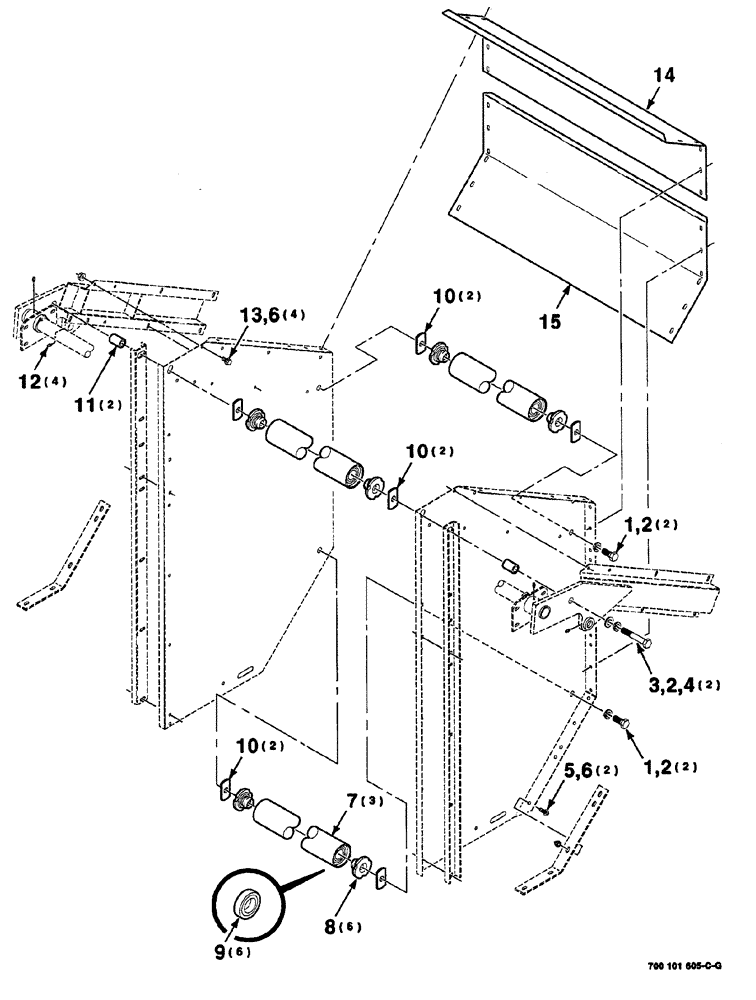

Запчасти Case IH 8420 (05-04) - TAILGATE ASSEMBLY (S/N CFH0010500 THRU CFH0054742 ) (16) - BALE EJECTOR

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

3

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

SCREW hex cap, 3/4"-10 x 4-1/2"

2шт.

4

705566

WASHER

hardened plain, 3/4"

2шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

6

231-5146

FLANGE NUT,3/8"-16

6шт.

7

700101606

CONVEYOR ROLLER

ASSY., Includes: Ref. 9

3шт.

8

700100927

HUB

roller

6шт.

9

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

6шт.

Part of Roller Assy. P/N 700101606

1шт.

10

700101588

SPACER

SPACER

6шт.

11

6288963

SPACER

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

13

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

14

700101628

PANEL

SHIELD upper

1шт.

15

700153937

PANEL ASSY. lower, includes decals

1шт.
