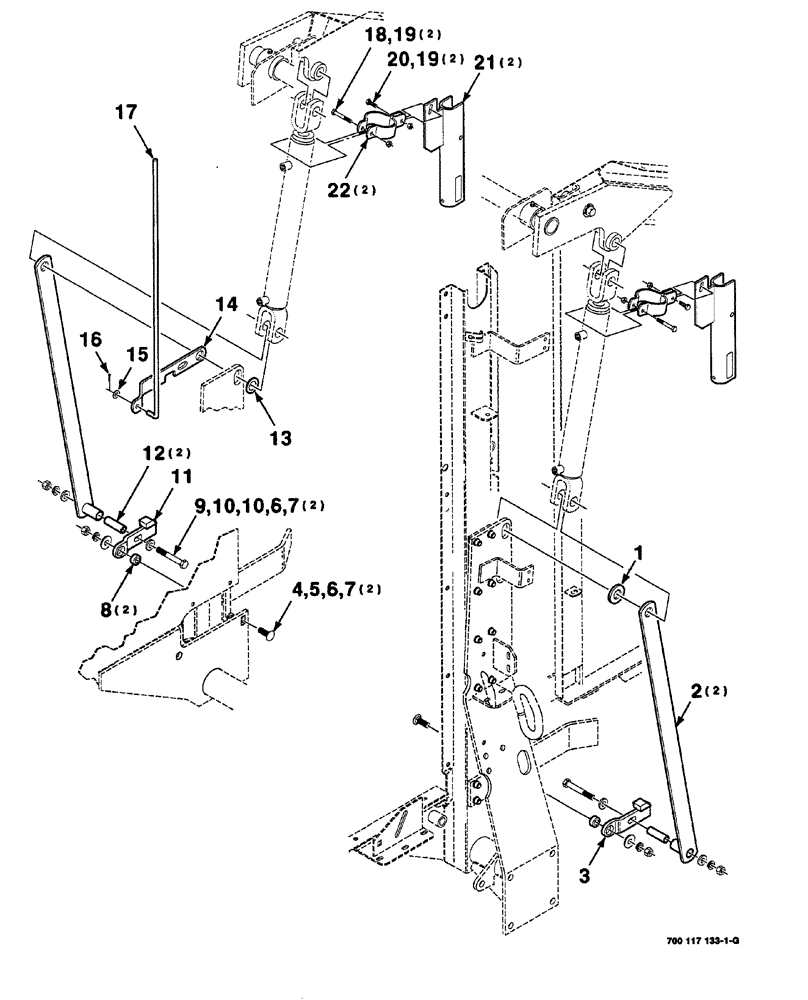

Запчасти Case IH 8420 (05-02) - TAILGATE LATCH AND SAFETY STOP ASSEMBLY (16) - BALE EJECTOR

1

230813

WASHER

special

1шт.

2

700101748

PLATE

ARM, WA

2шт.

3

700101744

LATCH

WA left

1шт.

4

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

5

495-21056

WASHER,1/2"

wide plain, 1/2"

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

425-108

NUT,1/2" - 13, Gr 5

4шт.

8

6287155

SPACER

2шт.

9

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2"

4шт.

11

700101745

LATCH

WA right

1шт.

12

700101751

SPACER

2шт.

13

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

BUSHING machinery, 1" x 10 gauge

1шт.

14

700101730

STRAP

1шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

1шт.

16

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

17

700101731

ROD

1шт.

18

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

19

230-4215

NUT,5/16"-18, GA

Center

4шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

700101831

COVER PLATE

WA safety

2шт.

22

700101583

CLAMP

WA mounting, stop

2шт.
