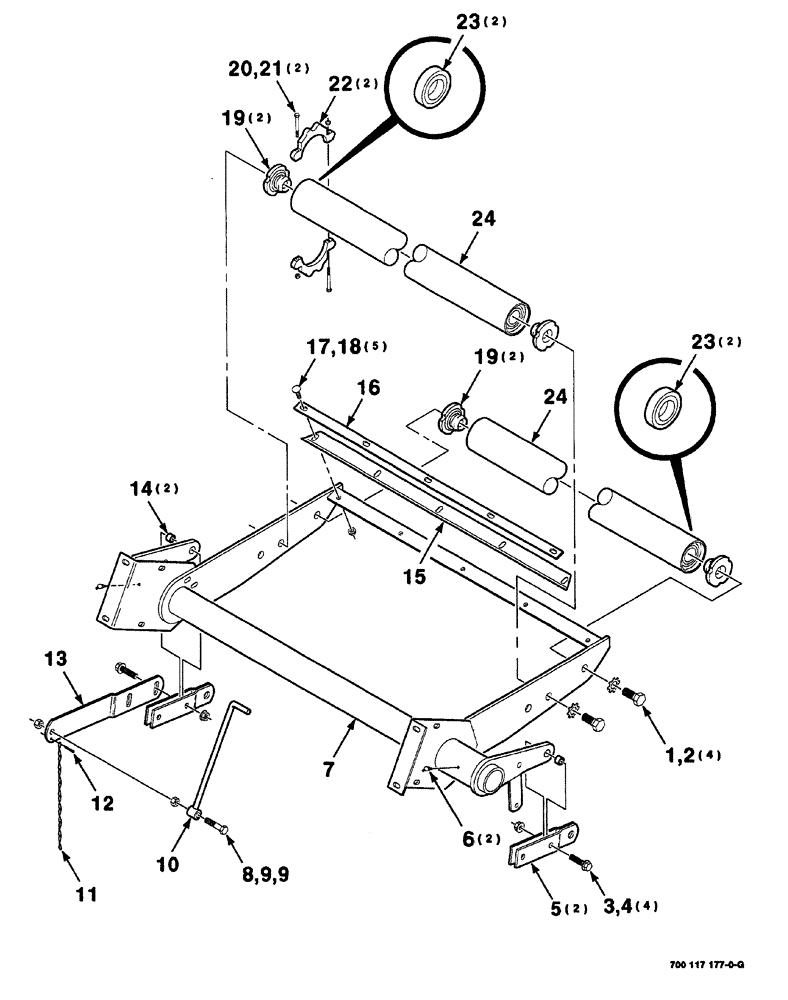

Запчасти Case IH 8420 (06-16) - TIGHTENER ROLLERS ASSEMBLY (LOWER) (14) - BALE CHAMBER

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

2

493-41078

LOCK WASHER,Ext Tooth, 3/4"

lock, external tooth, 3/4"

4шт.

3

7701865

BOLT,Flange, 1/2" - 13 x 1 3/4", SPL

SCREW hex flange serrated, 1/2"-13 x 2"

4шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

5

700101645

QUICK MALE COUPLING

ANCHOR, WA

2шт.

6

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

ZERK, 1/4"-28 x 45°

2шт.

7

700117178

ARM

WA tension, lower

1шт.

8

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

700117173

ROD

indicator

1шт.

11

6867394

CHAIN (AG)

1шт.

12

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

13

700117188

ARM

gauge

1шт.

14

437640

BUSHING,12.95mm ID x 19.05mm OD x 12.7mm L

SPACER

2шт.

15

700101866

ANTI-WRAP PLATE

1шт.

16

700101864

STRAP

1шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

5шт.

18

231-5146

FLANGE NUT,3/8"-16

5шт.

19

700100927

HUB

roller

4шт.

20

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

21

232-4114

LOCK NUT,1/4"-20, GC

hex top, 1/4"-20, GR/B

2шт.

22

6869499

DISC

serrated

2шт.

23

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

4шт.

Part of Tube Assy. P/N 700101637

1шт.

24

700101637

CONVEYOR ROLLER

TUBE ASSY., Includes: Ref. 23

2шт.
