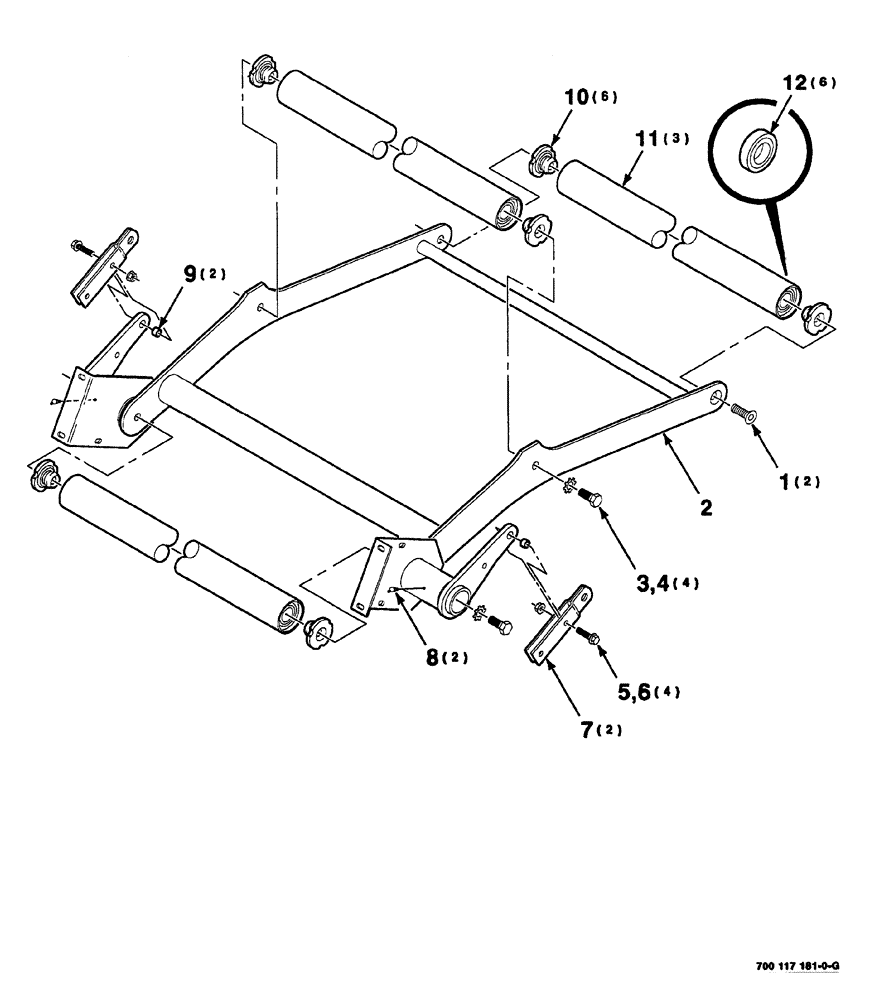

Запчасти Case IH 8420 (06-14) - TIGHTENER ROLLERS ASSEMBLY (UPPER) (14) - BALE CHAMBER

1

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

cap, hex socket flat countersunk head, 3/4"-10 x 1-3/4"

2шт.

2

700117182

ARM

FRAME, WA idler

1шт.

3

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

4

493-41078

LOCK WASHER,Ext Tooth, 3/4"

lock, external tooth, 3/4"

4шт.

5

7701865

BOLT,Flange, 1/2" - 13 x 1 3/4", SPL

SCREW hex flange serrated, 1/2"-13 x 2"

4шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

7

700101645

QUICK MALE COUPLING

ANCHOR, WA

2шт.

8

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

ZERK, 1/4"-28 x 45°

2шт.

9

437640

BUSHING,12.95mm ID x 19.05mm OD x 12.7mm L

SPACER

2шт.

10

700100927

HUB

roller

6шт.

11

700101637

CONVEYOR ROLLER

TUBE ASSY. idler, Includes: Ref. 12

3шт.

12

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

6шт.

Part of Idler Tube Assy. P/N 700101637

1шт.
