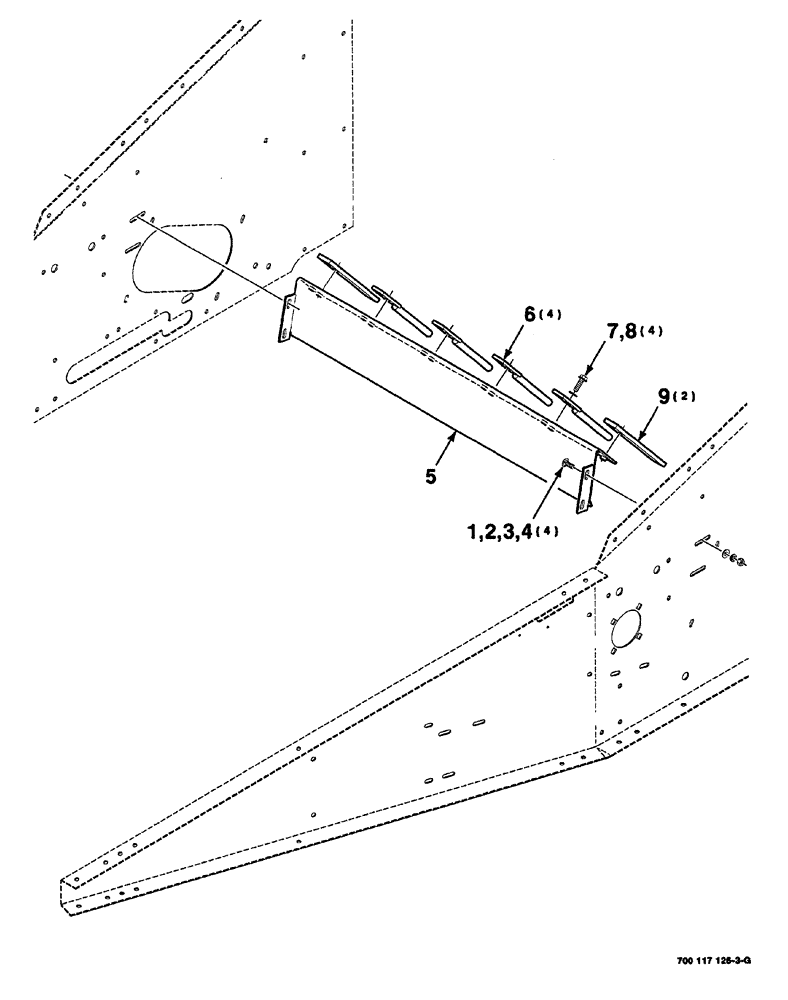

Запчасти Case IH 8420 (06-10) - BELT GUIDE ASSEMBLY (FORMING) (14) - BALE CHAMBER

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

700101699

ANTI-WRAP PLATE

WA

1шт.

6

700101724

SLIDE GUIDE

guide

4шт.

7

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8"-16 x 1-1/4", grade 8

4шт.

8

496-81010

WASHER

hardened wide plain, 3/8"

4шт.

9

700101726

STRAP

2шт.
